Name: CSC2-N48R3588S(M50) AI Server
Brand: Firefly
Availability: OutOfStock

CSC2-N48R3588S(M50) AI Server

$0.00

Taxes included. Shipping calculated at checkout.

ManualWikiDownload

Brand Firefly

Availability

Out of stock

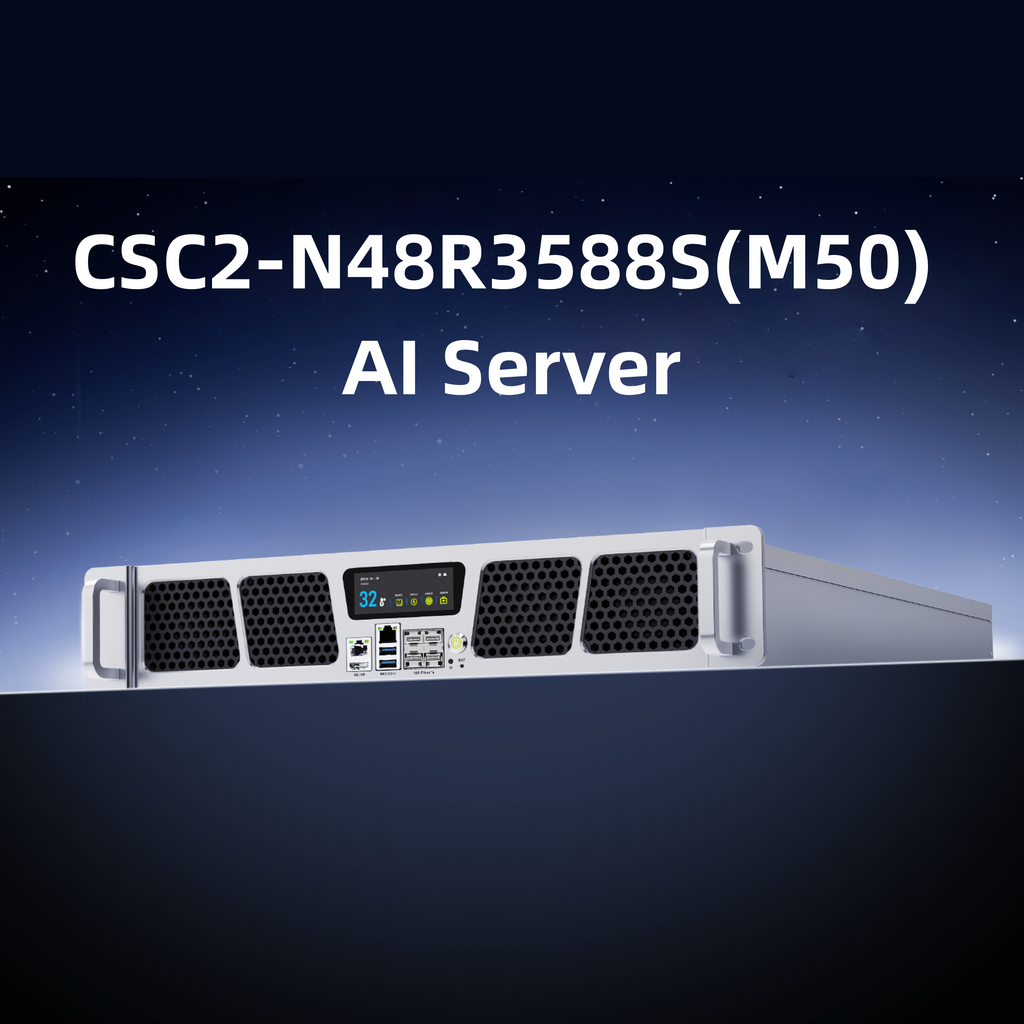

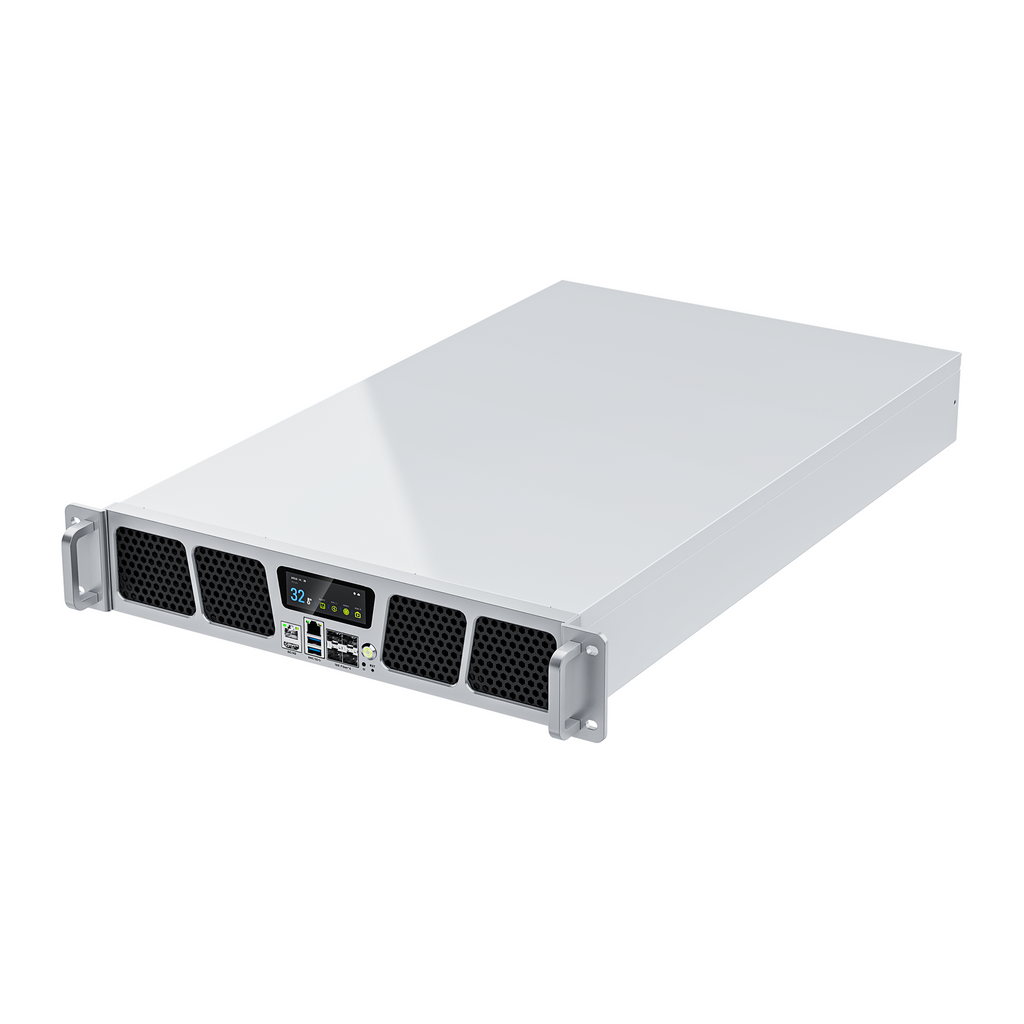

CSC2-N48R3588S(M50) AI Server

The server features standard 2U rackmount design with 48 RK3588S compute nodes and 48 M.2 slots. It supports optional deployment of 1 to 48 HOUMO M50 accelerator cards, each delivering 160 TOPS (INT8). Each node supports up to 48GB LPDDR5 memory with 153.6GB/s bandwidth, capable of running 35B large models at 10-35 tokens/s. It enables on-premise private deployment of mainstream LLMs (Llama, Qwen), VLM (SAM, ViT), and IGMs (Flux, Stable Diffusion). It is also equipped with 4 x 10GbE ports for high-speed data transmission.

48 Distributed Compute Nodes

Features 48 built-in high-performance distributed compute nodes based on Rockchip RK3588S, with a maximum frequency of 2.4GHz and peak computing power of 6 TOPS (INT8). The number of compute nodes is configurable.

48GGB LPDDR5 Memory

HOUMO M50 accelerator card supports up to 48GB LPDDR5 memory with a memory bandwidth of up to 153.6GB/s, delivering powerful data throughput capabilities.

Large Model Deployment

Supports on-premise private deployment of mainstream large language models (Llama, Qwen, etc.), vision foundation models (SAM, ViT, etc.), and image generation models (Flux, Stable Diffusion, etc.).

Software Smooth Operation

Capable of smoothly running a wide range of software, including databases such as MySQL, Oracle, and Redis; web services like Nginx and Apache; virtualization tools such as KVM; email services like Postfix; and data analytics platforms including Hadoop and Spark — maintaining stability and efficiency even when multiple software applications run in parallel.

Integrated Network Control

Features 4 x 10GbE SFP+ ports and 1 x MGMT (BMC management network interface), supporting independent out-of-band BMC operation and maintenance management. Built-in Layer 3 routing and switching, VLAN partitioning, and QoS traffic control functions effectively optimize network transmission efficiency and enhance overall system network security protection.

BMC Management System

Equipped with intelligent BMC management system, enabling real-time monitoring, software configuration, hardware configuration, troubleshooting, anomaly alerts, system upgrades, and remote O&M. Features dedicated BMC management network interface for independent out-of-band O&M management. Built-in Layer 3 routing and switching, VLAN partitioning, and QoS traffic control functions.

Touchscreen for Real-Time Status

Equipped with a touchscreen display that shows real-time key operating data such as chassis temperature, power efficiency, fan speed, network IP, date and time, making it easy for users to monitor device status in real time for more convenient and efficient operation and maintenance management.

Efficient and Low-Cost

The Server highly integrates computing units, storage, USB controllers, network controllers, power management controllers, and sensors into a single system. It provides an all-in-one SDK for deep learning development, along with a suite of software tools including low-level drivers, compilers and inference deployment tools, reducing users' procurement, development and operational costs.

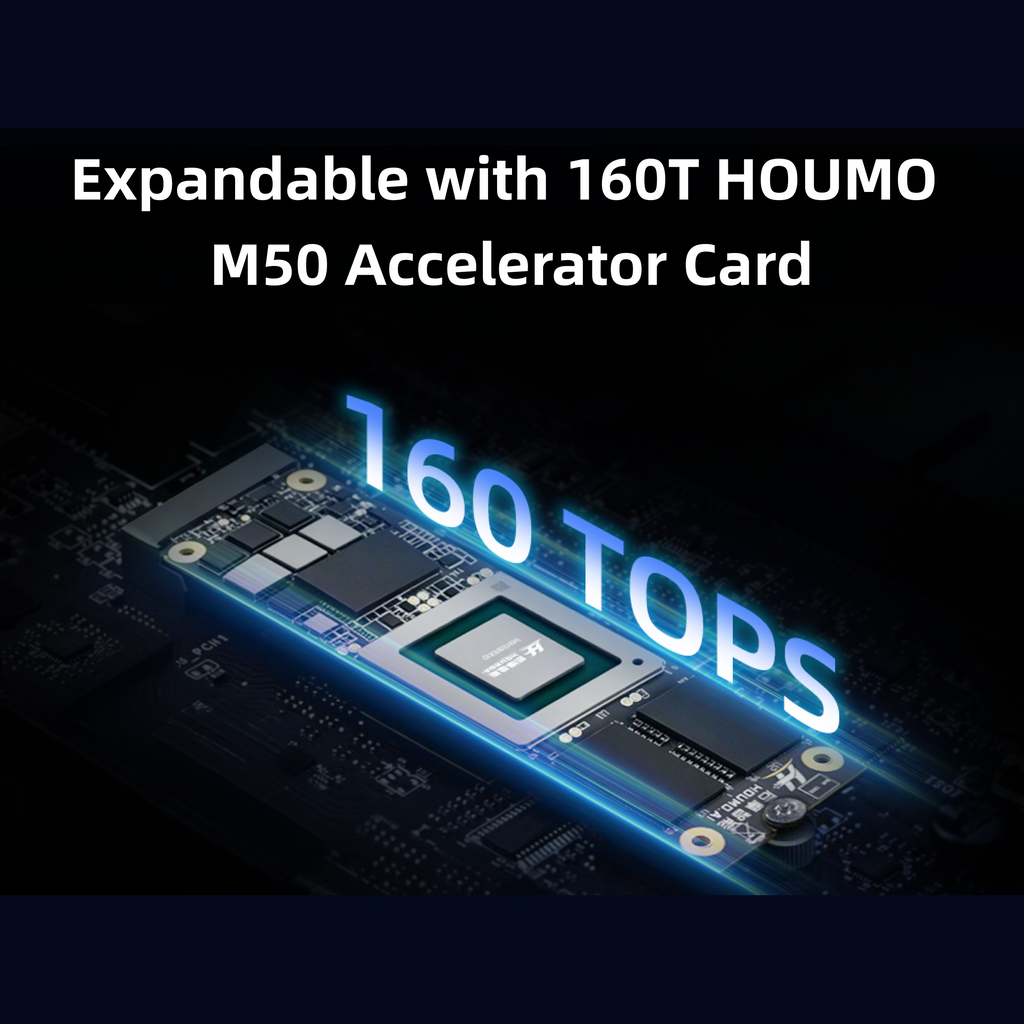

Expandable with 160T HOUMO M50 Accelerator Card

The server features 48 built-in M.2 interfaces, allowing flexible expansion of 1-48 HOUMO M50 accelerator cards as needed. A single accelerator card delivers up to 160 TOPS (INT8) and 100 TFLOPS (bFP16) of computing power, enabling smooth operation of large models up to 35B parameters with inference speeds of 10-35 tokens/s.

Application Scenarios

Widely applicable in industry fields such as Intelligent Computing Server, Edge Computing, Large Model Localization, Smart City, Smart Healthcare, Smart Industry and Intelligent Security.

Intelligent Computing Server

Private Deployment of Large Models

Smart City

Smart Healthcare

Smart Industry

Intelligent Security

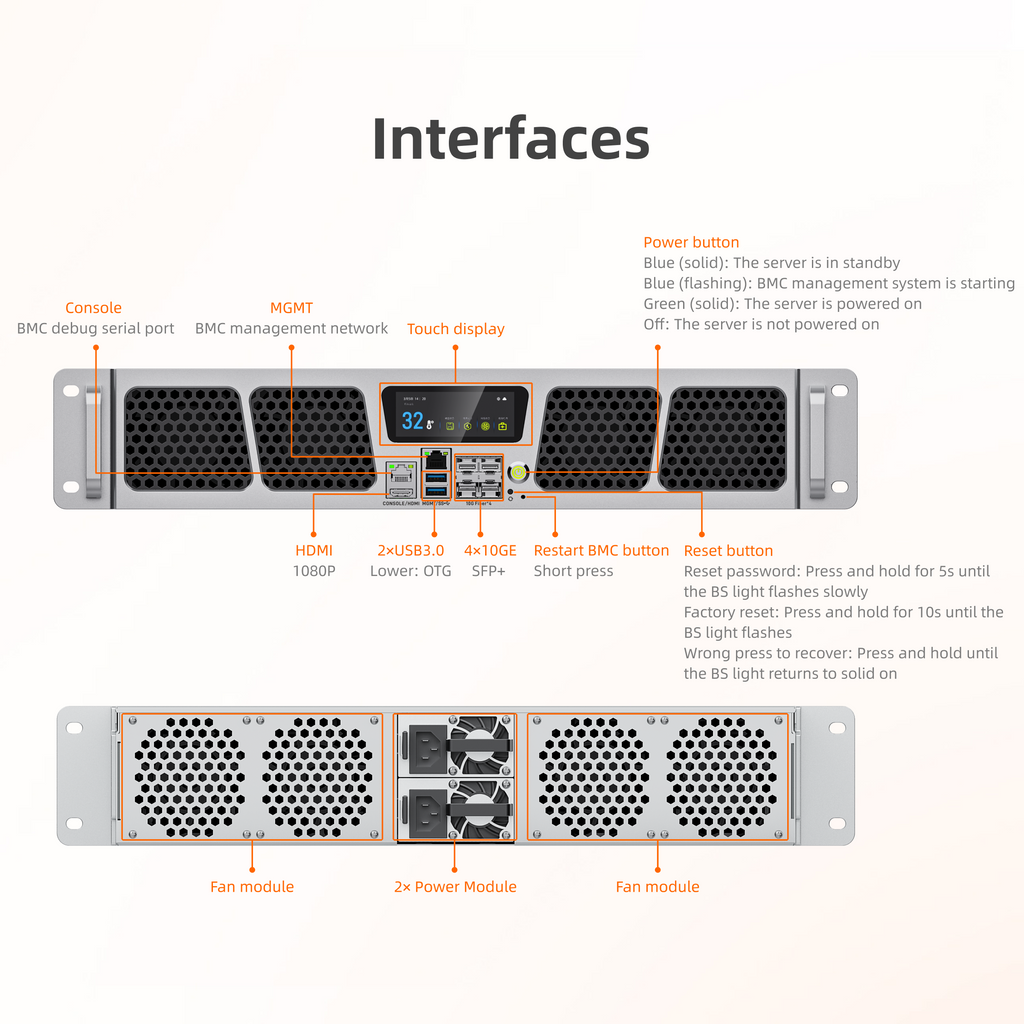

Interfaces

Specifications

CSC2-N48R3588S(M50)
Technical Specifications	Server form	2U rack-mounted computing power server
	Architecture	ARM architecture
	Compute nodes	48 distributed computing nodes (RK3588S): Octa-core 64-bit processor, max. frequency 2.4GHz
	Control nodes	1 control node (RK3588): Octa-core 64-bit processor, max. frequency 2.4GHz
	Screen	1 touch display, capable of real-time displaying device information such as chassis temperature, energy efficiency, fan speed, network IP, date and time
	Fan module	12 high-speed cooling fans
Basic Specifications	SOC	RK3588S
	CPU	Octa-core 64-bit 2.4GHz
	NPU	288TOPS
	Video decoding	8K@60fps H.265/VP9/AVS2 1080P@60fps MPEG-2/-1/VC-1/VP8 4K@60fps AV1 8K@30fps H.264 AVC/MVC
	Codec	Video Encoding: 1×8K@30fps/16×1080P@30fps H.264 Video Decoding: 8K@60fps/4K@120fps VP9/AVS2, 8K@30fps H.264/AVC/MVC, 30×1080P@30fps H.264
	Accelerator expansion (Slave module)	48 × Houmo M50 Modules (48GB LPDDR5, 160 TOPS(INT8), 100 TFLOPS(bFP16), 153.6GB/s high bandwidth. Supports smooth running of large models within 35B parameters, with performance of 10~35 Token/s@35B)
	RAM	16GB LPDDR5 (4GB/8GB/16GB/32GB) × 48 (number of computing nodes)
	Storage	256GB eMMC (16GB/32GB/64GB/128GB/256GB) × 48 (number of computing nodes)
	Power	2 AC redundant power supplies (Hot-swappable supported)
	Dimension	724.0mm × 430.0mm × 88.8mm
	Environment	Operating Temperature: 0ºC ~ 35ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non- condensing)
Physical Specifications	Installation requirements	IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm
Physical Specifications	Full weight	Net weight of the server: 23.1kg, total weight with packaging: 25.3kg
Software Specifications	BMC	The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
Interface Specifications	Internet	4 × 10G Ethernet (SFP+), 1 × Gigabit Ethernet (RJ45, MGMT used as BMC management network)
	Console	1 × Console (RJ45, BMC debug serial port, baud rate 115200)
	Display	1 × HDMI (Maximum resolution 1080P, BMC management display)
	USB	2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG using a USB flash drive)
	Button	1 × Reset button, 1 × Power button, 1 × Restart BMC button
