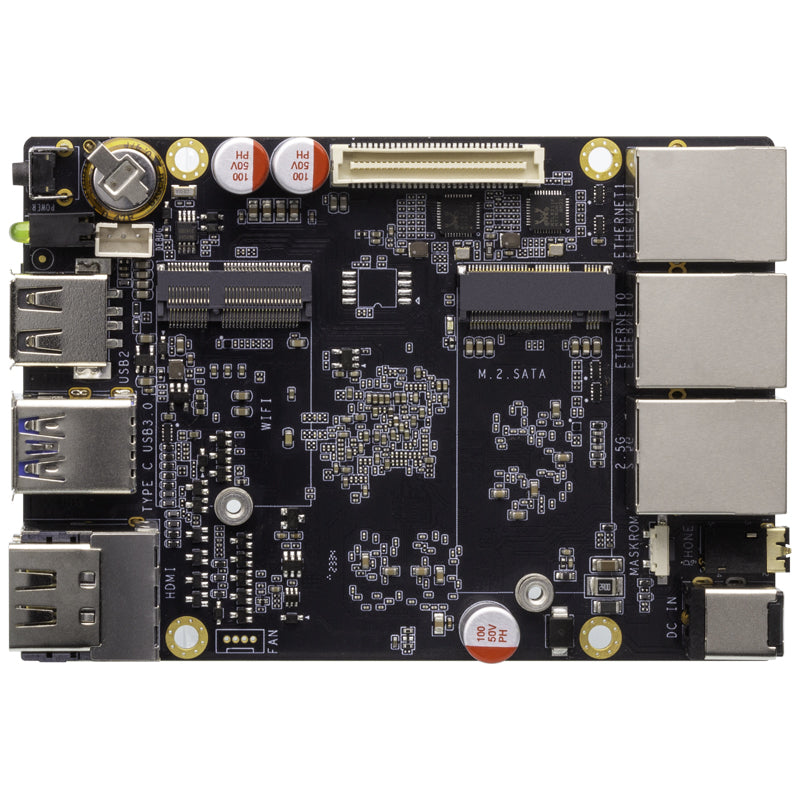

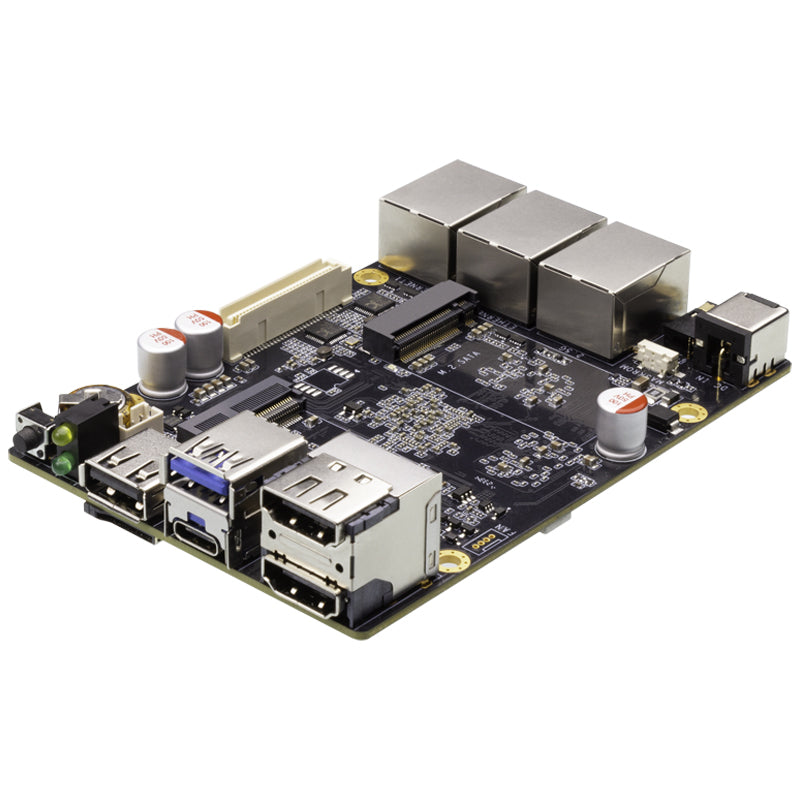

ROC-RK3588-RT

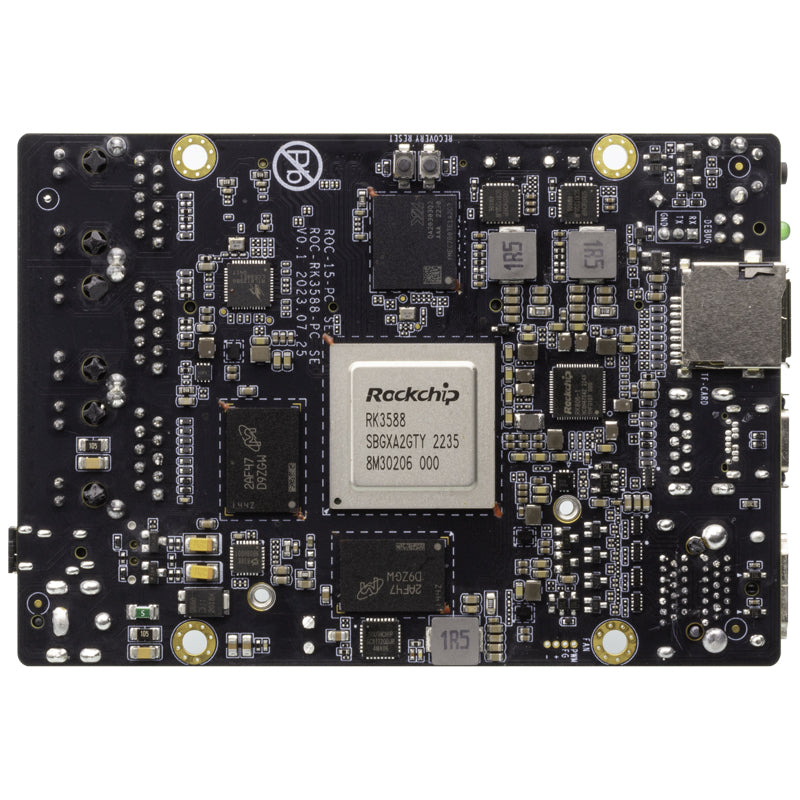

Rockchip RK3588

Rockchip RK3588J

Octa-core 64-bit(4×Cortex-A76+4×Cortex-A55), Up to 2.4GHz

Octa-core 64-bit(4×Cortex-A76+4×Cortex-A55), Up to 1.6GHz

ARM Mali-G610 MP4 Quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS

The computing power is up to 6TOPs (INT8), supports INT4/INT8/INT16 hybrid computing, and can be based on TensorFlow/MXNet/PyTorch/Caffe and other series of frameworks

Hardware Decoding: 8K@60fps VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware Encoding: 8K@30fps H.264

4GB/8GB/16GB/32GB LPDDR4/LPDDR4x

32GB/64GB/128GB eMMC

1 × M.2 SATA/PCIe NVMe SSD (2242), 1 × TF Card

Android, Linux OS, OpenWRT

DC 12V (5.5 × 2.1mm, support 9V~36V wide voltage input)

Max: 14.4W(12V/1200mA)

Normal: 3W(12V/250mA)

Min: 0.36W(12V/30mA)

Max: 13.2W(12V/1100mA)

Normal: 3W(12V/250mA)

Min: 0.36W(12V/30mA)

108.48mm × 74.98mm × 22.80mm

≈94g

Operating Temperature: -20℃～60℃,

Operating Humidity: 10%～90%RH(non-condensing)

Operating Temperature: -40℃～85℃,

Operating Humidity: 10%～90%RH(non-condensing)

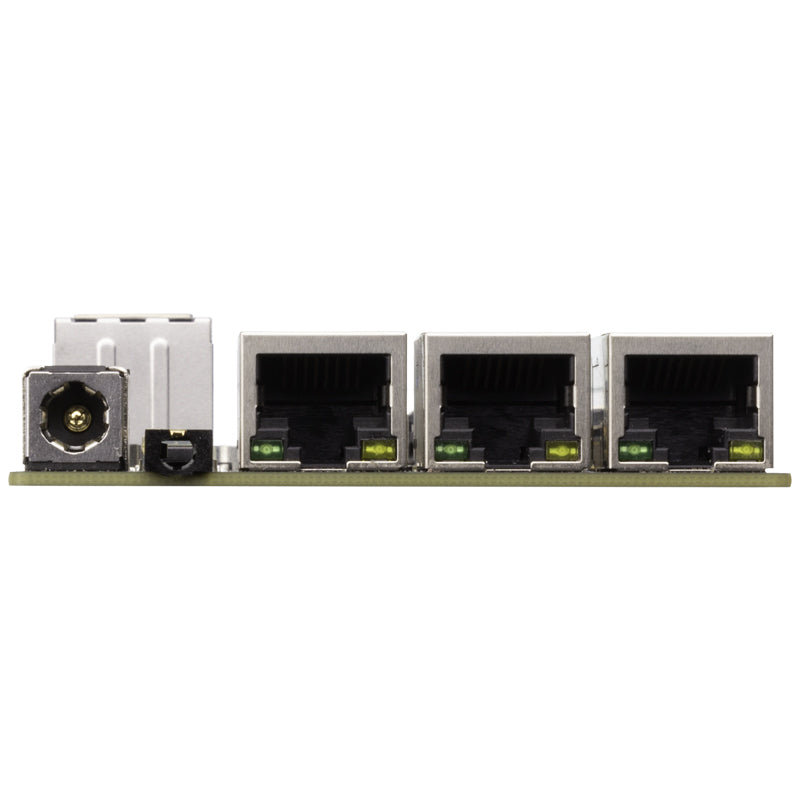

2 × 1000M bps Ethernet

1 × 2.5G bps Ethernet

WAN / LAN Customizable

The WiFi/Bluetooth module can be expanded through the M.2 E-KEY (2230), supporting WiFi6 and Bluetooth5.0

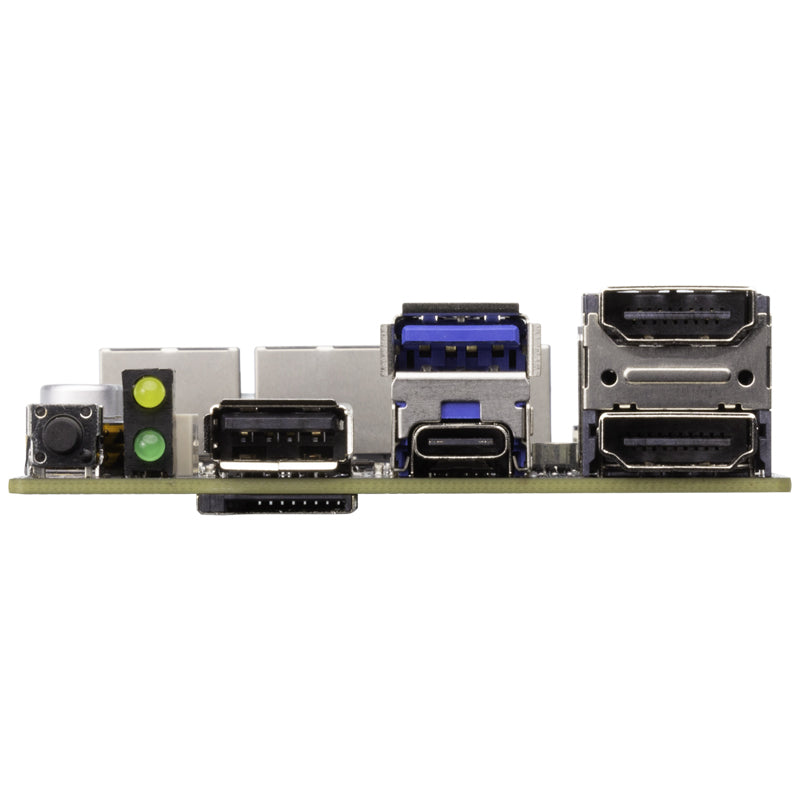

1 × HDMI2.1 (8K@60Hz), 1 × HDMI2.0 (4K@60Hz), 1 × DP1.4 (8K@30Hz, output via Type-C port)

1 × 3.5mm Audio jack (Support MIC recording, American standard CTIA)

1 × USB3.0 (Max: 1A), 1 × USB2.0 (Max: 500mA), 1 × Type-C (USB3.0 OTG/DP1.4)

1 × Debug (Debugging Serial Port, 3Pin-2mm)

1 × Recovery, 1 × Reset

1 × BTB connector (2×30Pin/0.8PH), interfaces can be extracted：2×PCIe3.0(4Lanes) | 2×UART | 1×USB2.0 | 1×CAN | 1×SARADC | GPIO

Among them, the PCIe3.0 can be combined in a variety of ways:

1 × PCIe3.0 (4Lanes, RC or EP) or

1 × PCIe3.0 (2Lanes, RC or EP) + 1 × PCIe3.0 (2Lanes, RC) or

1 × PCIe3.0 (2Lanes, RC or EP) + 1 × PCIe3.0 (1Lane, RC) or

4 × PCIe3.0 (1Lane, RC)
