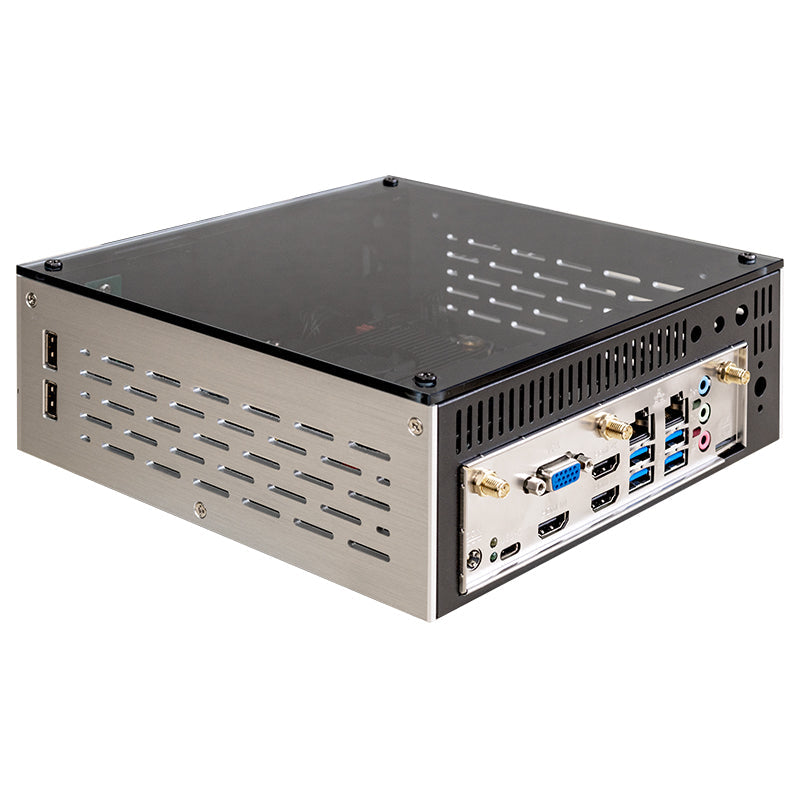

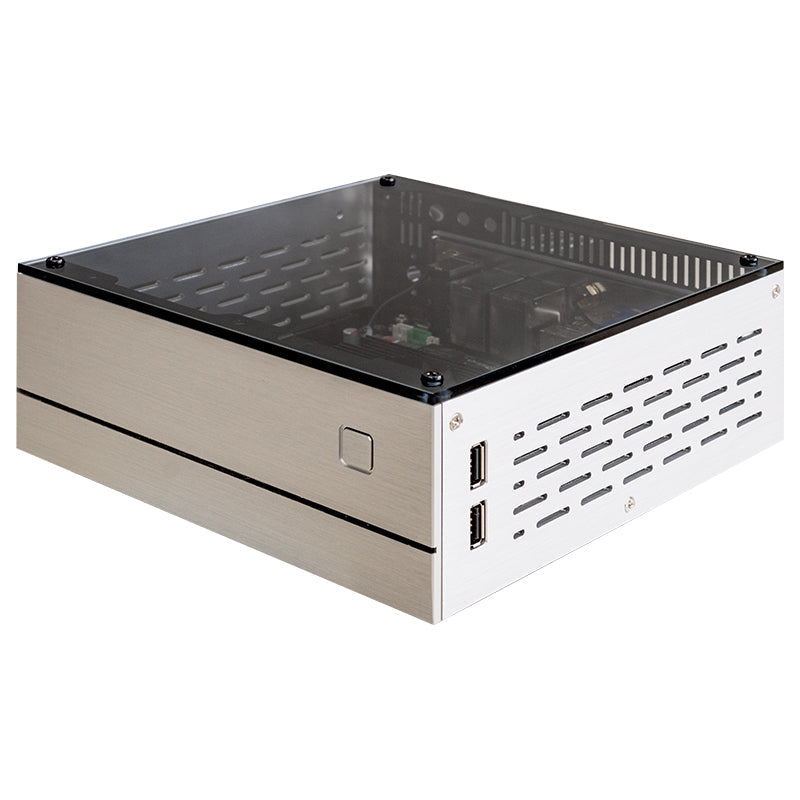

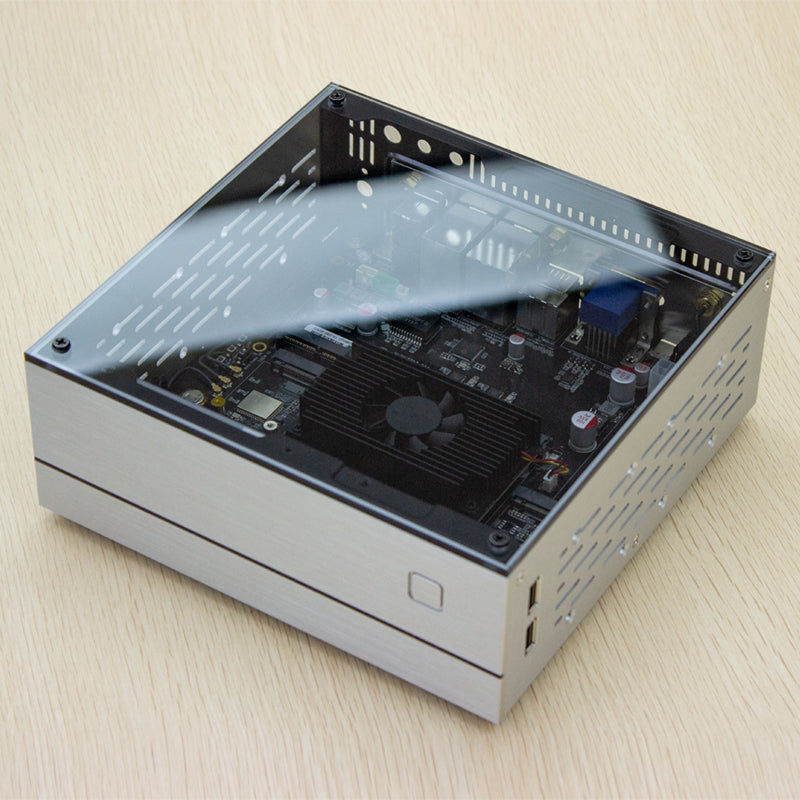

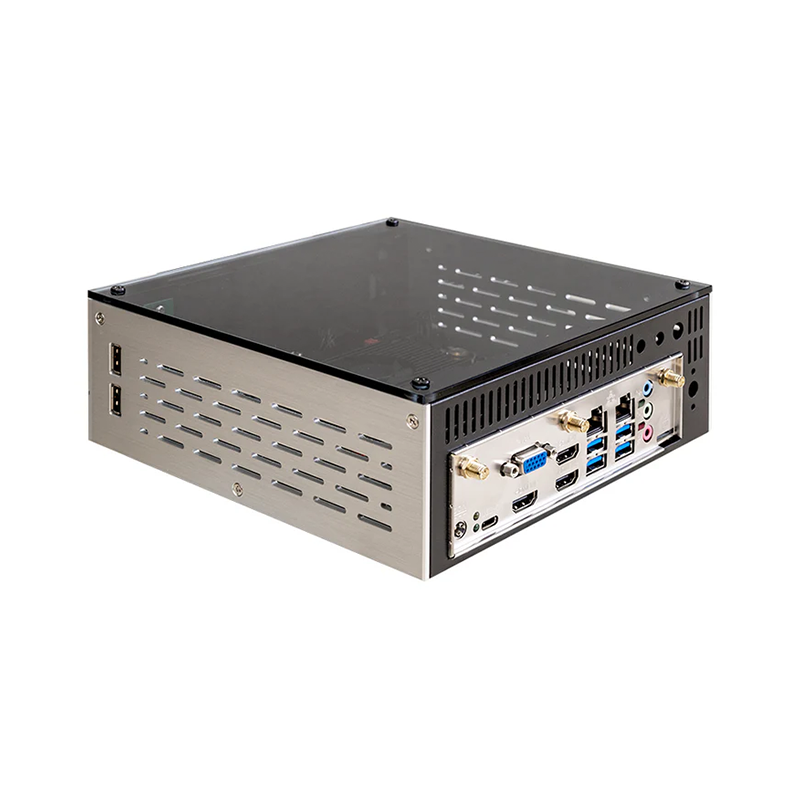

EC-I3588J RK3588 Embedded Industrial PC

RockChip RK3588

8-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm lithography process, frequency up to 2.4GHz

ARM Mali-G610 MP4 quad-core GPU
Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

• NPU computing power up to 6 TOPS
• Support INT4/INT8/INT16 mixed operation
• Support framework switching of TensorFlow/MXNet/PyTorch/Caffe

Video decoding:

• 8K@60fps H.265/VP9/AVS2
• 8K@30fps H.264 AVC/MVC
• 4K@60fps AV1
• 1080P@60fps MPEG-2/-1/VC-1/VP8


Video encoding:

• 8K@30fps encoding, support H.265 / H.264
• Achieve up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding

4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)

16GB/32GB/64GB/128GB eMMC

• 1 × M.2 SATA3.0, can expand with one 2242 (SATA3.0) SSD
• 4 × standard SATA3.0, can expand with two SATA3.0 SSD/HDD
• 1 × TF Card Card

DC12V voltage input (DC5.5×2.1mm)

• Idle: ≈1.35W (12V/110mA)
• Typical: ≈4.8W (12V/400mA)
• Max: ≈20W (12V/1700mA)

• 1 × HDMI2.1 (8K@60fps or 4K@120fps)
• 1 × HDMI2.0 (4K@60fps)
• 1 × DP1.4 (8K@30fps, USB-C multi-function interface output)
• 1 × VGA (1080P@60fps)

1 × HDMI-IN (4K@60fps), support HDCP 2.3

• 1 × Line-In input
• 1 × MIC input
• 1 × HDMI audio input

• 1 × Phone output
• 2 × HDMI audio output
• 1 × DP1.4 audio output

• Android: Android 12.0
• Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS, etc.
• Supports UEFI Boot

200mm x 200mm x 85mm

≈1.3kg (no peripheral devices)

• Operating Temperature: -20℃- 60℃
• Storage Temperature: -20℃- 70℃
• Storage Humidity: 10%～80 %

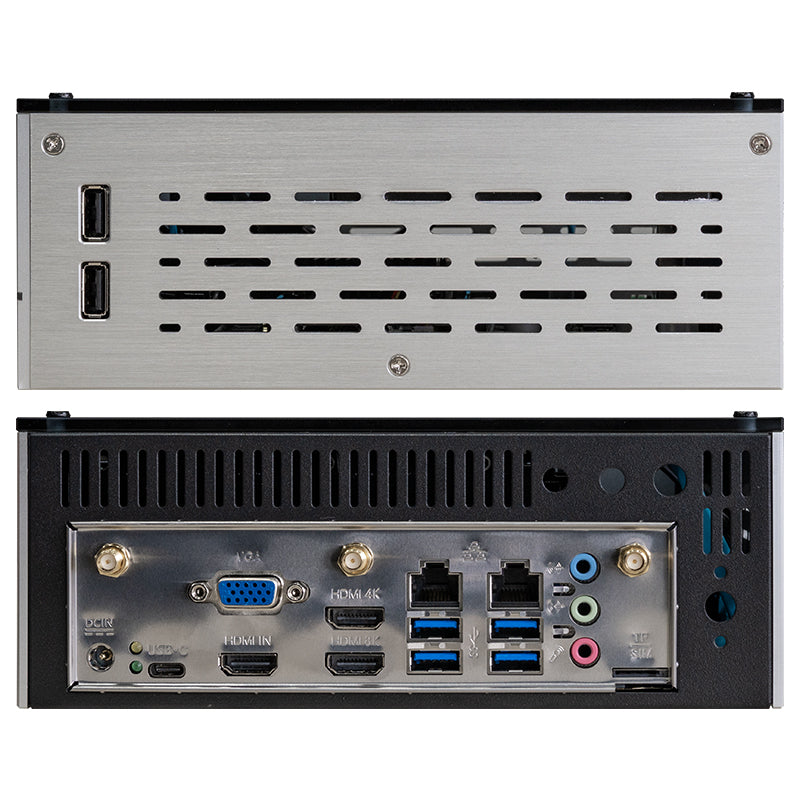

2 × 1000Mbps Ethernet (RJ45)

*One of them supports POE power supply and the max output is 60w (optional)

4G LTE/5G
Bluetooth5.0
2.4GHz/5GHz Dual-band Wi-Fi6
GbE × 2

• 4 × USB3.0 (Limit 1A)
• 1 × USB-C multi-function interface（USB3.0 OTG / DP1.4） (Limit 2A)
• 2 × USB2.0 (Limit 500mA)

1 × Power Button
