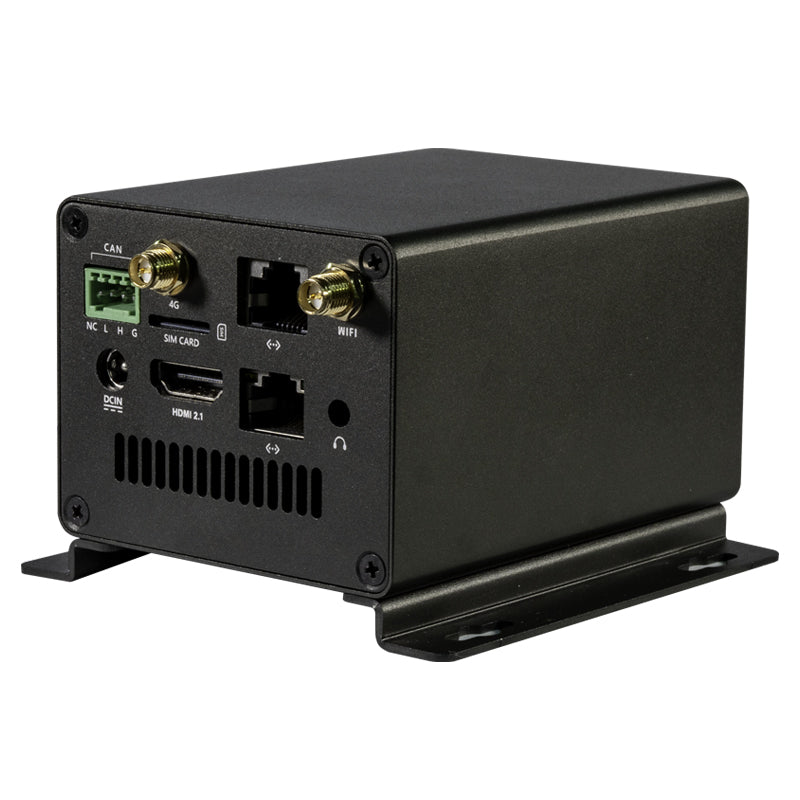

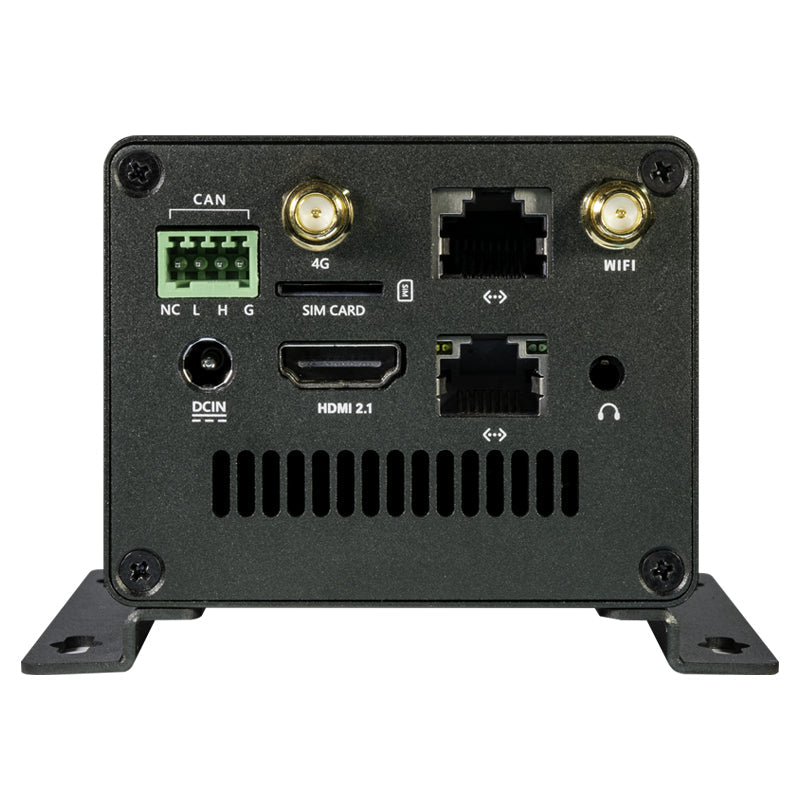

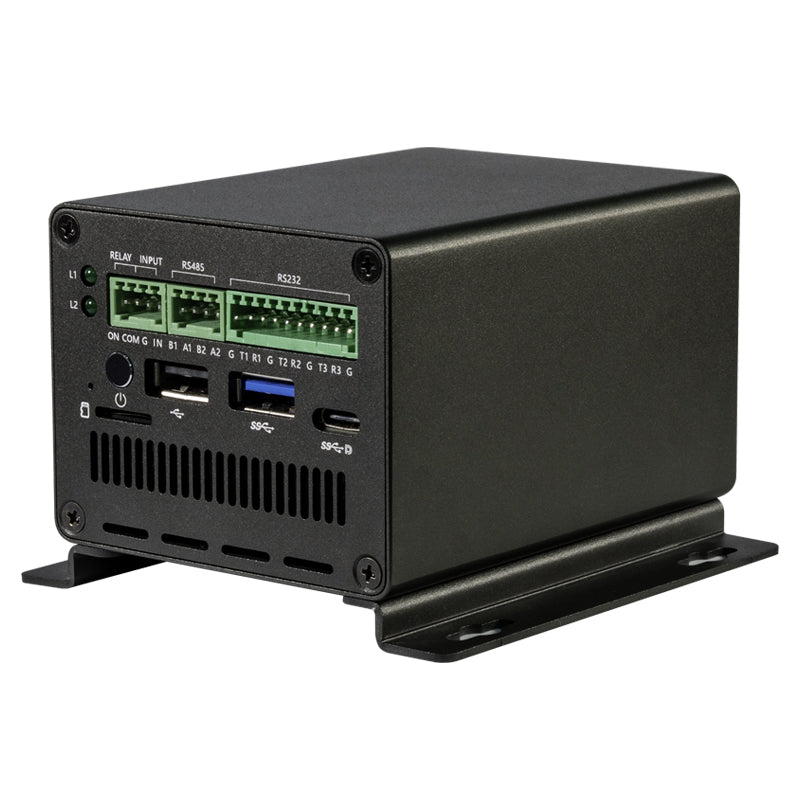

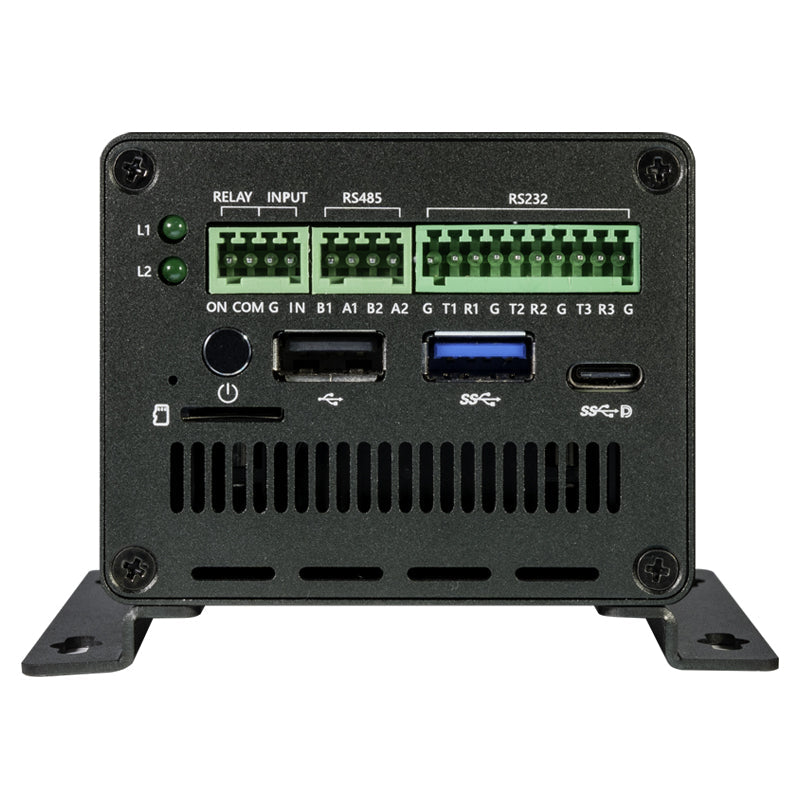

EC-R3576PC ARM Embedded Industrial PC

RK3576

Octa-core 64-bit processor (4×A72 + 4×A53), up to 2.2GHz

G52 MC3 @ 1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1,
with high-performance 2D acceleration hardware embedded

6 TOPS NPU, support mixed operations of INT4/8/16/FP16/BF16/TF32

Decode: 8K@30fps/4K@120fps: VP9, AVS2, AV1, 4K@60fps: H.264/AVC
Encode: 1@60fps: H.264/AVC

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB optional)

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS3.1 (optional)

DC 12V (5.5mm × 2.1mm, support 12V~24V wide voltage input)

Android14, Linux OS, Buildroot+QT

・ Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B and other large language models
・ It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators
・ Support Docker container management technology

96.6mm × 93.0mm × 64.0mm

≈ 0.45kg

Operating Temperature: -20℃ ~ 60℃, Storage Temperature: -20℃～70℃, Storage Humidity: 10%～90%RH (non-condensing)

1 × Gigabit Ethernet (RJ45), 1 × 100Mbps Ethernet(RJ45), support 2.4GHz/5GHz dual-band WiFi (802.11a/b/g/n/ac), Bluetooth 5.0, expandable 4G LTE

1 × USB3.0 (Max:1A), 1 × USB2.0 (Max: 500mA), 1 × Type-C (OTG/DP1.4, Max: 2A)
