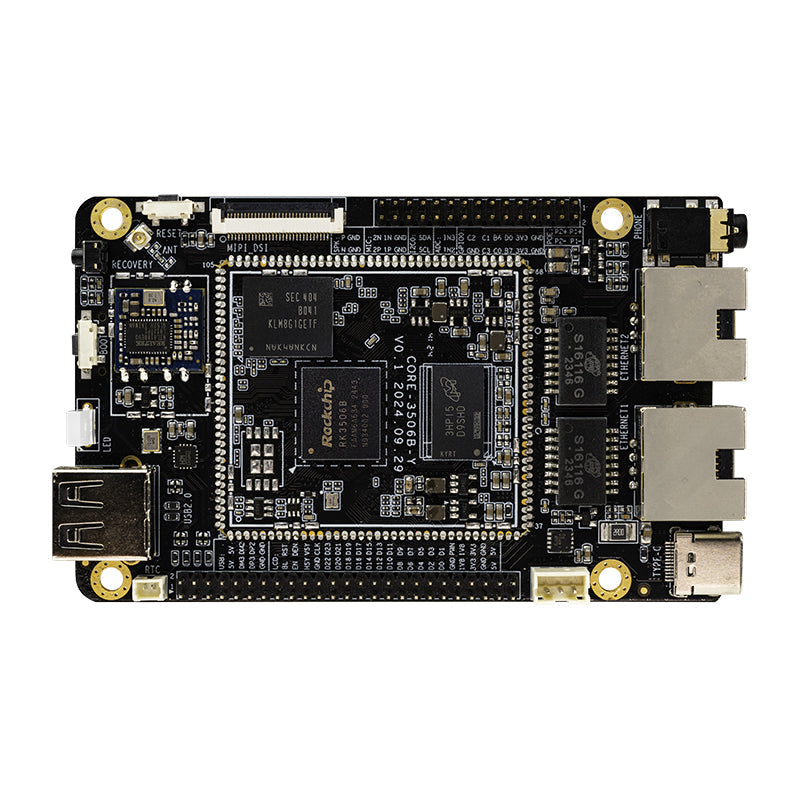

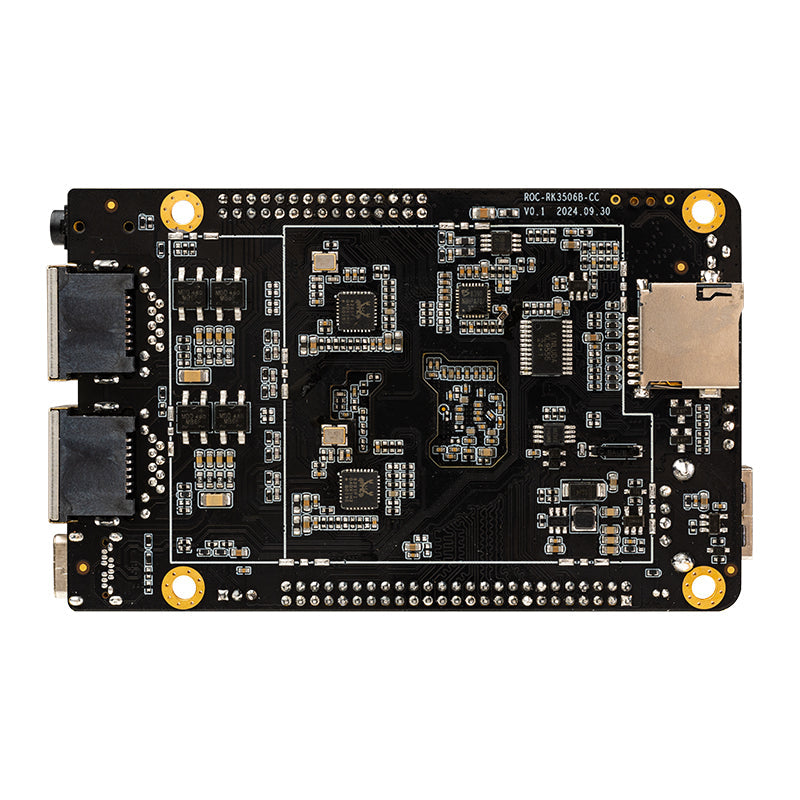

Core-3506JY Industrial System On Module RK3506J

ROC-RK3506J-CC ARM Single Board Computer

512M RAM+8G ROM
$159.00
$159.00
Skip to product information
Core-3506JY Industrial System On Module RK3506J
  • Core-3506JY Industrial System On Module RK3506J
  • Core-3506JY Industrial System On Module RK3506J
ROC-RK3506J-CC ARM Single Board Computer

ROC-RK3506J-CC ARM Single Board Computer

$159.00
$159.00
Taxes included. Shipping calculated at checkout.
Storage:512M RAM+8G ROM
Quantity
ManualWikiDownload
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand Firefly
Availability 46 in stock
Soc

RK3506J
Cpu

Quad-core 32-bit processor (3×Cortex-A7+1×Cortex-M0), 22nm advanced process technology, main frequency up to 1.2GHz
Vpu

Video Soft Solution: 720P@30fps, 480P@60fps H.264/MJPEG, support RTSP video streaming
Ram

512MB DDR3 (256MB/512MB optional)
Storage

8GB eMMC, 256MB SPI Flash (optional),
1 × TF Card (Not pasted by default, it cannot be used at the same time as eMMC, but can be used at the same time as SPI Flash)
Power

DC 5V/2A (Powered by Type-C, voltage tolerance ± 5%)
Power consumption

Max: 1.5W(5V/300mA)
Normal: 1W(5V/200mA)
Min(Sleep): 0.2W(5V/40mA)
Video output

1 × MIPI-DSI (1×2 Lanes, 1280×1280@60fps, 30Pin-0.5mm)
Supports RGB/MIPI display screens with 2 Lanes (up to 720P resolution)
Audio output

1 × 3.5mm Audio jack (Support MIC recording, American Standard CTIA)
Os

Linux
Dimension

99.43mm × 60.0mm × 12.39mm
Weight

≈42g
Environment

Operating Temperature: -40℃ ~ 85℃
Storage Humidity: 10%～90%RH (non-condensing)
Internet

2 × 100M Ethernet (RJ45/100Mbps), supports 2.4GHz single-band WiFi (802.11a/b/g/n)
Usb

1 × USB2.0 (HOST, Max: 500mA), 1 × Type-C (OTG/DC 5V)
Button

1 × Reset, 1 × Recovery, 1 × Boot
