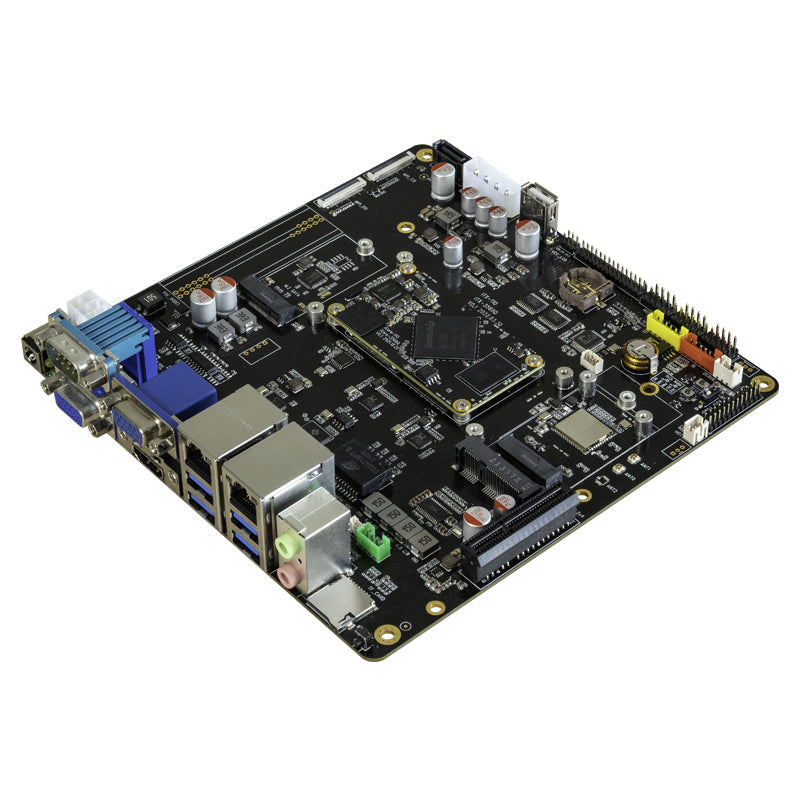

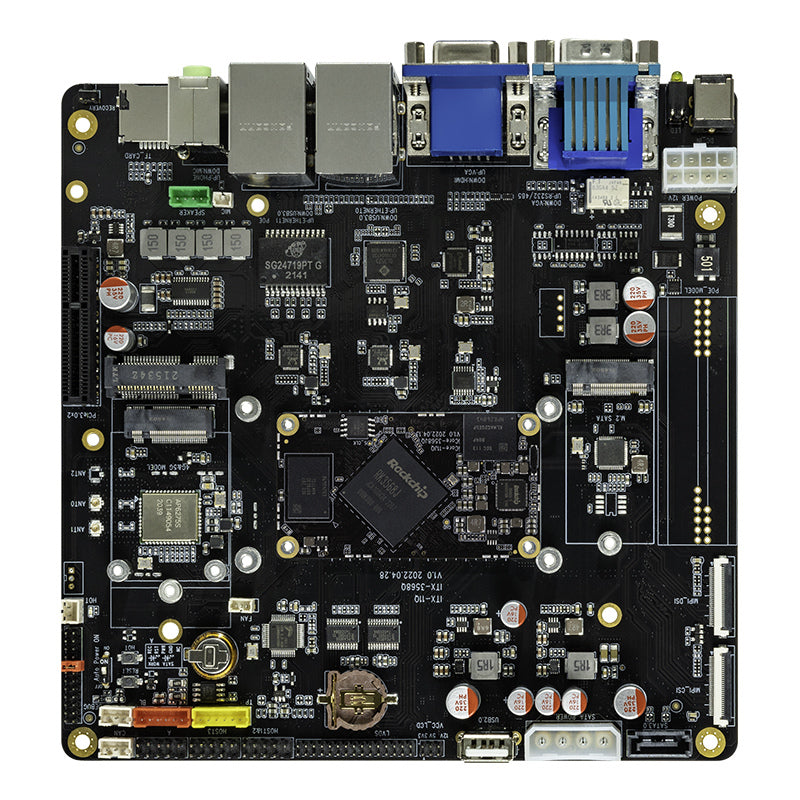

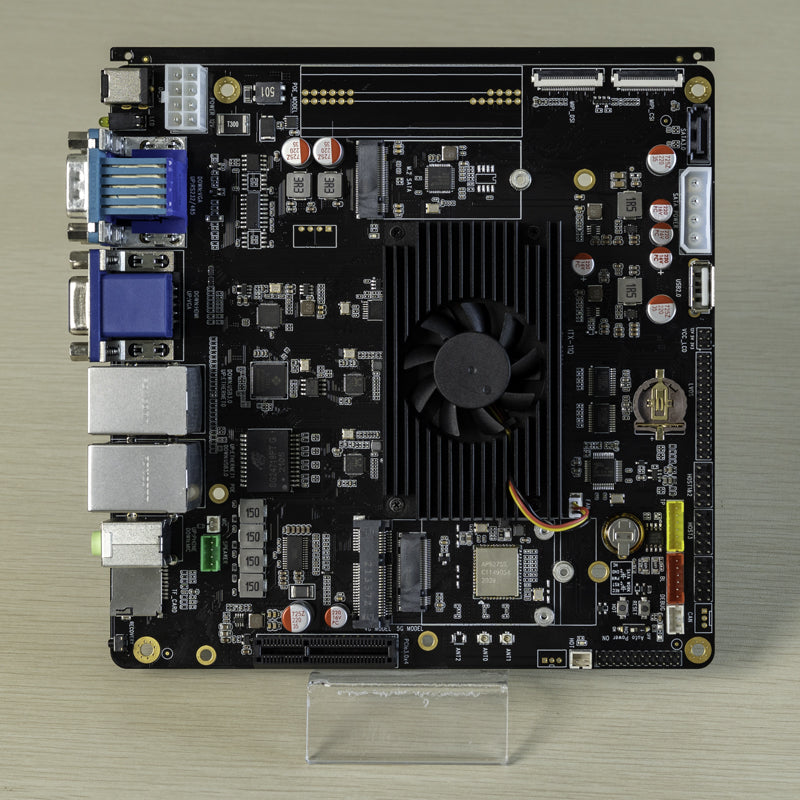

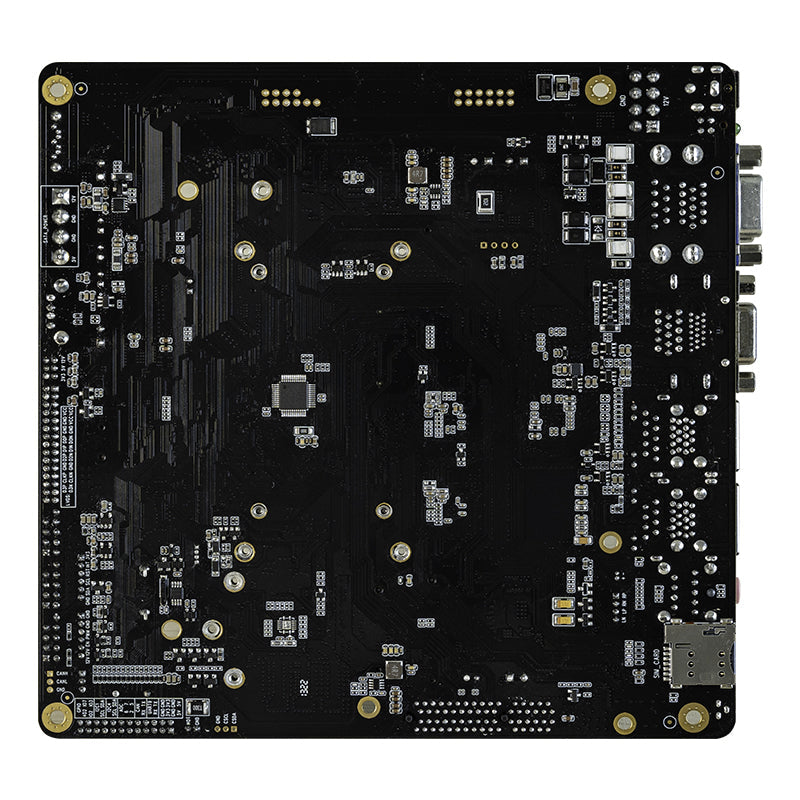

ITX-3568JQ

Rockchip RK3568J

Quad-core 64-bit Cortex-A55 processor, 22nm lithography process, up to 1.4GHz

ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware

Supports 8M ISP, supports HDR

Integrated high-performance AI accelerator RKNN NPU, 1.0Tops@INT8(Commercial), 512MAC NPU(Industrial and Automotive)

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

4K@60fps H.264/VP9 video encoding(or 8CH 1080P@30fps multi-format decoding)

1080P@60fps H.264 video encoding

LPDDR4 (1GB/2GB/4GB/8GB optional)

eMMC(8GB/16GB/32GB/64GB/128GB optional)

16MB SPI Flash

Android 11.0, Ubuntu 18.04, Ubuntu 20.04, RTLinux

Multiple power supply methods:

DC 12V voltage input (5.5×2.1mm, 12V/1.5A or higher recommended)

Chassis power supply 12V input (standard ATX power connector)

POE 48V power input (up to 60W)

Min: 3.96W(12V/0.33A)

Normal: 6W(12V/0.5A)

Max: 12W(12V/1A)

17cm×17cm(standard Mini-ITX), adaptable to a universal ITX computer case

≈ 400g(Peripherals not included)

Operating Temperature: -40℃～85℃, Operating Humidity: 10%～90%RH(non-condensing)

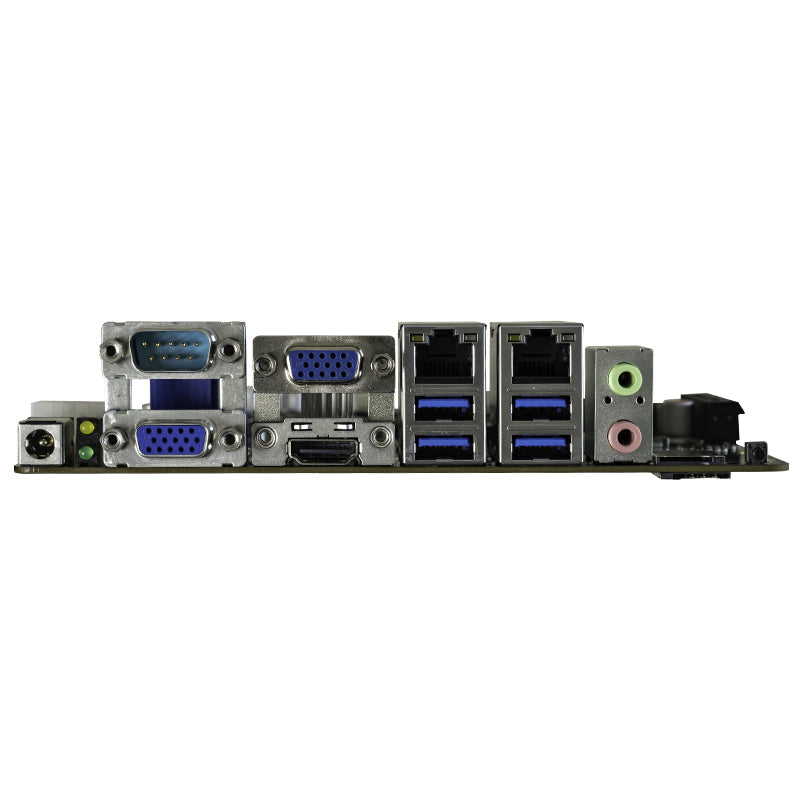

2 × Gigabit Ethernet (RJ45/1000Mbps), support POE (maximum output power 60W)

Supports 2.4GHz/5GHz dual-band WiFi6 (802.11a/b/g/n/ac/ax protocol), Bluetooth 5.0, and expandable 5G/4G LTE

1 × MIPI CSI camera interface (configurable as single channel (4 lanes) or dual channel (2 lanes))

1 × HDMI2.0 (4K@60Hz)

1 × MIPI DSI (single channel 1920×1080@60fps)

1 × LVDS display interface (led by pin header)

2 × VGA (1080P)

* It can support up to three different display outputs

1 × SATA3.0 standard interface

1 × M.2 SATA3.0 (expandable 2242 SATA SSD)

1 × PCIe 3.0 (2Lanes), expandable standard PCIe 3.0 devices

4 × USB3.0 (current limit: 1A)

4 × USB2.0 (3 USB2.0 are led by motherboard pins, current limit 500mA)

RS485, RS232, I2C, CAN, UART, ADC, GPIO, Debug, FAN, MIC
