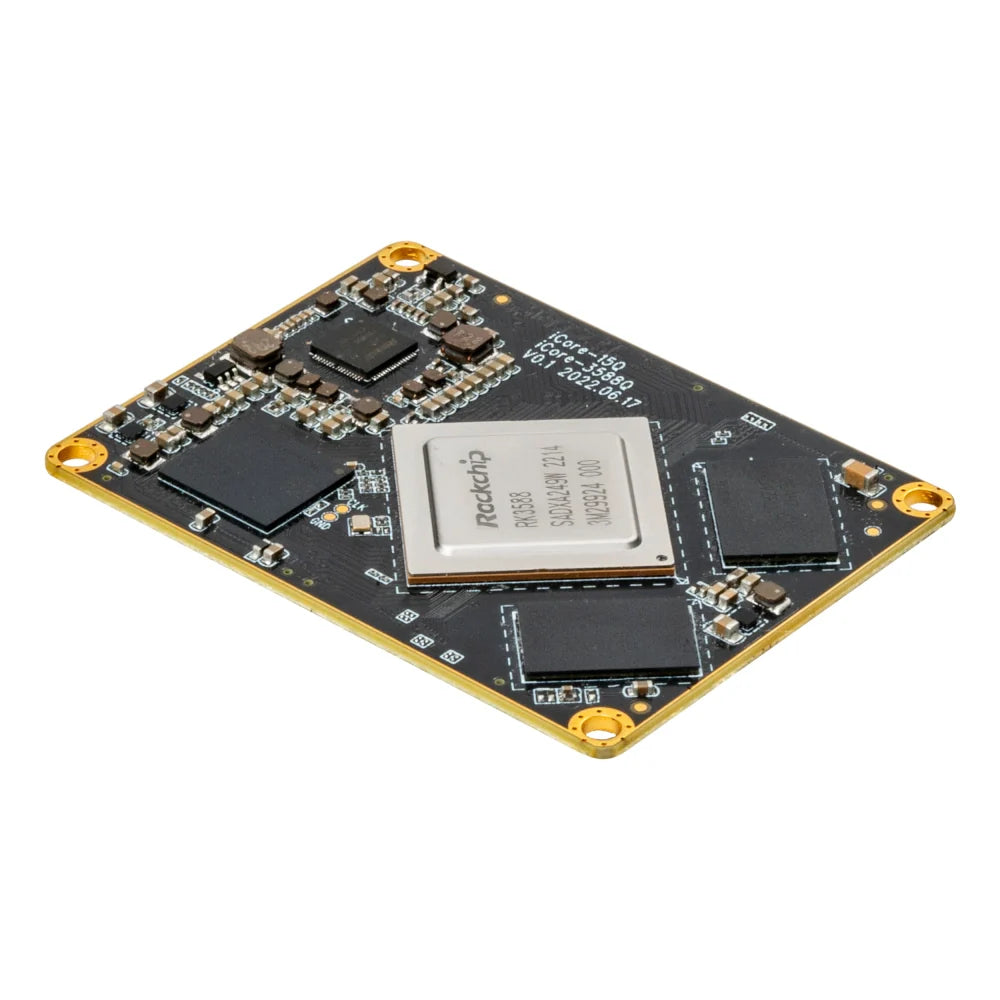

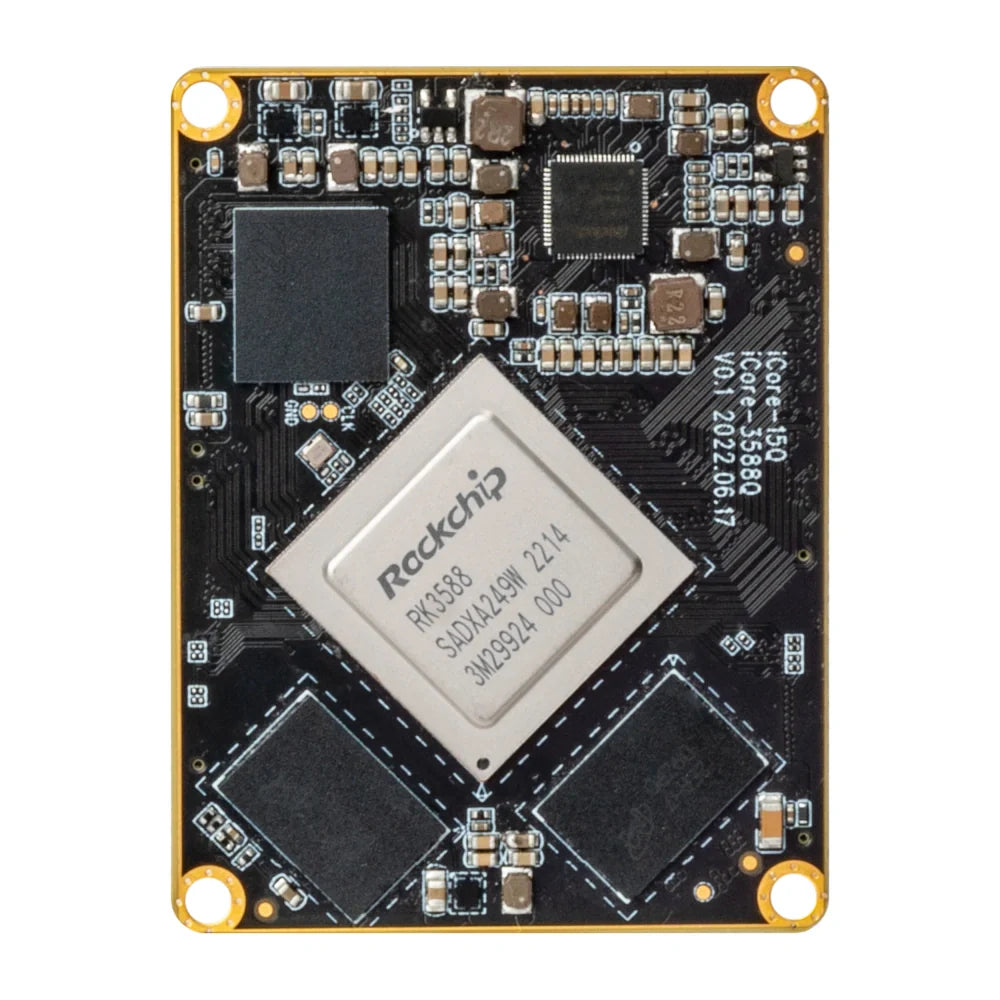

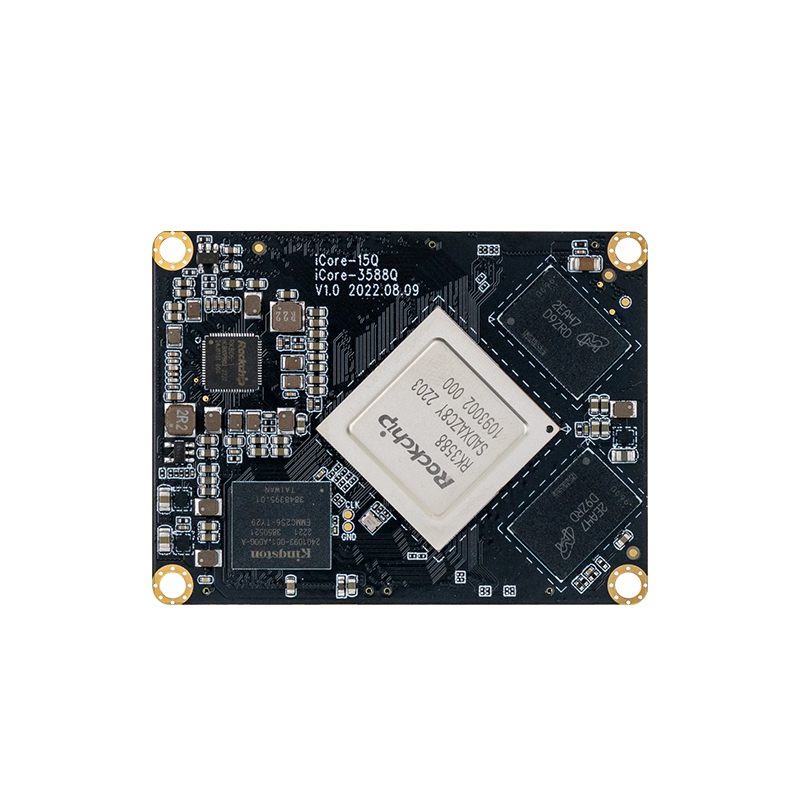

iCore-3588Q

Rockchip RK3588

Rockchip RK3588J

Rockchip RK3588M

Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), up to 2.4GHz

Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), up to 1.6GHz

Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), up to 2.0GHz

ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

48MP ISP with HDR & 3DNR

Up to 6TOPS (INT8), support INT4/INT8/INT16 mixed operations

Support framework switching of TensorFlow/MXNet/PyTorch/Caffe

Hardware decoding: 8K@60fps VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware encoding: 8K@30fps H.264

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB/32GB optional)

eMMC (32GB/64GB/128GB/256GB optional)

Android, Linux OS

4V (voltage tolerance ± 5%)

Min:≈0.032W(4.0V/8mA)

Normal:≈0.84W(4.0V/210mA)

Max:≈11.2W(4.0V/2.8A)

Min:≈0.032W(4.0V/8mA)

Normal:≈0.84W(4.0V/210mA)

Max:≈7.6W(4.0V/1.9A)

Min:≈0.032W(4.0V/8mA)

Normal:≈0.92W(4.0V/230mA)

Max:≈10W(4.0V/2.5A)

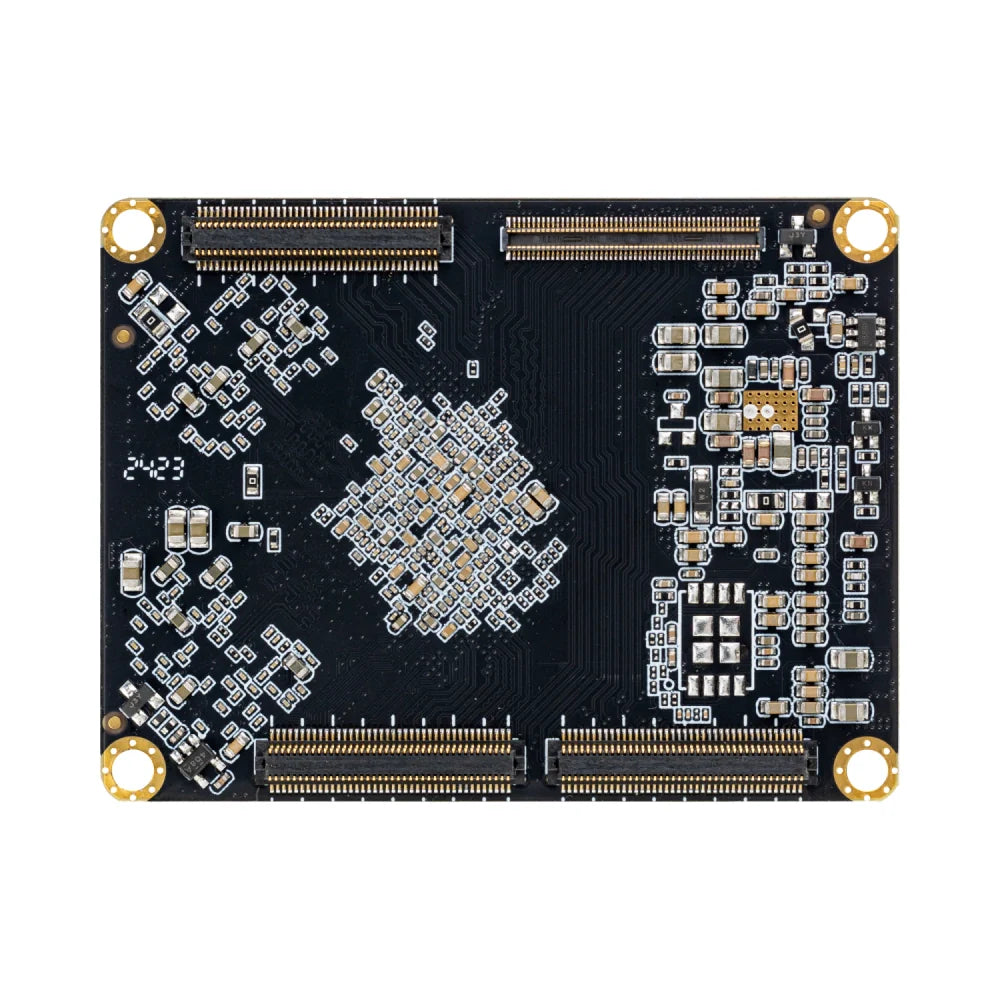

BTB (3 × BTB Socket (80Pin) + 1 × BTB Socket (100Pin))

66.0mm × 50.0mm × 5.8mm

≈22g

Operating temperature: -20℃～60℃

Operating humidity: 10%～90%RH(non-condensing)

Operating temperature: -40℃～85℃, Operating humidity: 10%～90%RH (non-condensing)

2 × GMAC, providing RGMII/RMII interface, supporting 10/100/1000Mbps data transfer rate
Expandable WiFi6/Bluetooth via SDIO3.0/PCIe3.0 interface
Expandable 5G/4G LTE via USB3.0 interface

1 × HDMI-IN (4K@60fps), supporting HDCP 2.3

2 × MIPI-CSI (4 lanes) or 4 × MIPI-CSI (2 lanes) or 1 × MIPI-CSI (4 lanes) + 2 × MIPI-CSI (2 lanes)

2 × MIPI DC (4-lane DPHY v2.0 or 3-lane CPHY V1.1)1 × DVP (up to 150MHz data input)

* Support multi-channel 8K video output and 4K video input. Up to seven displays can be achieved

2 × HDMI2.1 (8K@60fps or 4K@120fps, shared with eDP)

2 × MIPI-DSI (4K@60fps)

2 × DP1.4 (8K@30fps, shared with USB3.0)

1 × BT.1120 (1080P@60fps)

2 × I2S (8 lanes), 2 × I2S (2 lanes), 2 × SPDIF, 1 × VAD, 2 × PDM (8 lanes, support multi-Mic array), 1 × dual-channel digital audio codec (16-bit DAC)

3 × SATA3.0 (Multiplexed with PCIe2.1)

3x SATA3.0

3 x SATA3.0

1 × PCIe3.0 (2×2lanes, 1×4lanes, 4×1lane, 1×2lanes+2×1lane), 3 × PCIe2.1 (1lane, multiplexed with SATA3.0)

2 × USB3.1(Gen1) OTG, 1 × USB3.1(Gen1) HOST, 2 × USB2.0 HOST, 2 × USB2.0 OTG

9 × I2C, 10 × UART, 5 × SPI, 4 × ADC, 16 × PWM, 1 × SDMMC, GPIOs, 3 × CAN (not supported by iCore-3588MQ)
