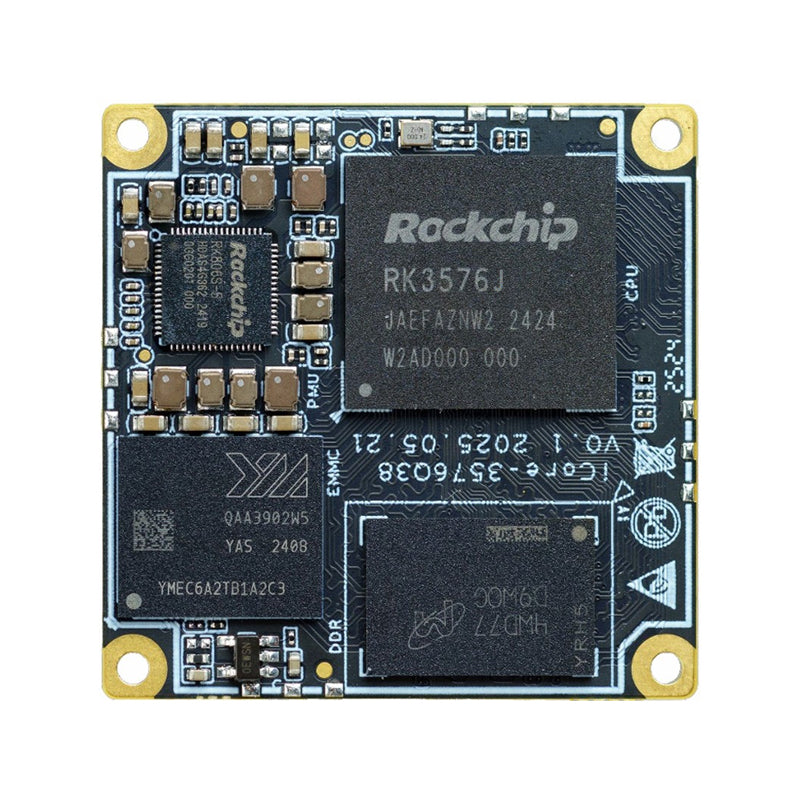

ICORE-3576Q38 AI SoM

Equipped with Rockchip octa-core AIoT processor RK3576, supports private deployment of modern mainstream large models and decoding of up to 8K video. With a compact size of just 38 × 38mm, this SoM integrates 6 TOPS NPU and features industrial-grade innovations such as real-time networking, Flexbus, hardware resource isolation, and DSMC.

AI Processor RK3576

Features the octa-core 64-bit high-performance AIoT processor RK3576, built with a big.LITTLE architecture and a main frequency of up to 2.2GHz. It includes a Mali-G52 MC3 GPU delivering 145 GFLOPS, enabling efficient heterogeneous computing and providing robust support for high-performance computing and multitasking.

6 TOPS Computing Power

Built-in powerful NPU with computing power of up to 6 TOPS, supporting INT4/INT8/INT16/FP16/BF16/TF32 mixed operations. Capable of intelligent data processing, voice recognition, and image analysis, meeting the edge computing AI application needs of most terminal devices.

Private Deployment

Supports private deployment of ultra-large-scale parameter models based on the Transformer architecture, such as the Gemma series, ChatGLM series, Qwen series, Phi series, and other large language models.

Industrial-Grade Features

Incorporates industrial innovations like real-time networking, Flexbus, hardware resource isolation, and DSMC. Operating temperature range: -20°C to 60°C, ensuring high reliability in extreme industrial environments.

8K Video Decoding

Supports 8K@30fps / 4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264/AVC), as well as 4K@60fps video encoding (H.264/AVC).

Multiple Operating Systems

Compatible with RTLinux kernel for excellent real-time performance, widely used in industrial applications. Also supports Android 14, Linux OS, and Buildroot, providing a secure and stable system environment for product development.

Development Materials

Comes with reference design and comprehensive technical documentation for the carrier board, enabling efficient secondary development and rapid product iteration.

Rich Expansion Interfaces

Features a wide range of expansion interfaces including CAN FD, I3C, UART, I2C, SAI, PWM, SPI, PCIe 2.1, SATA 3.0, and USB 3.0, meeting peripheral expansion needs for various scenarios.

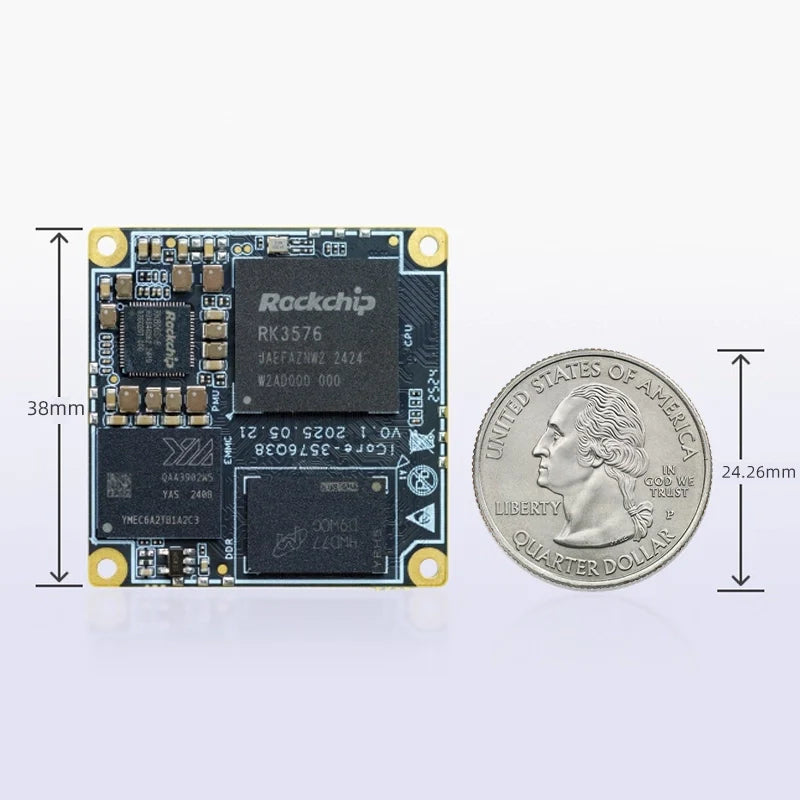

38 × 38mm Mini Size

38 × 38mm Mini Size

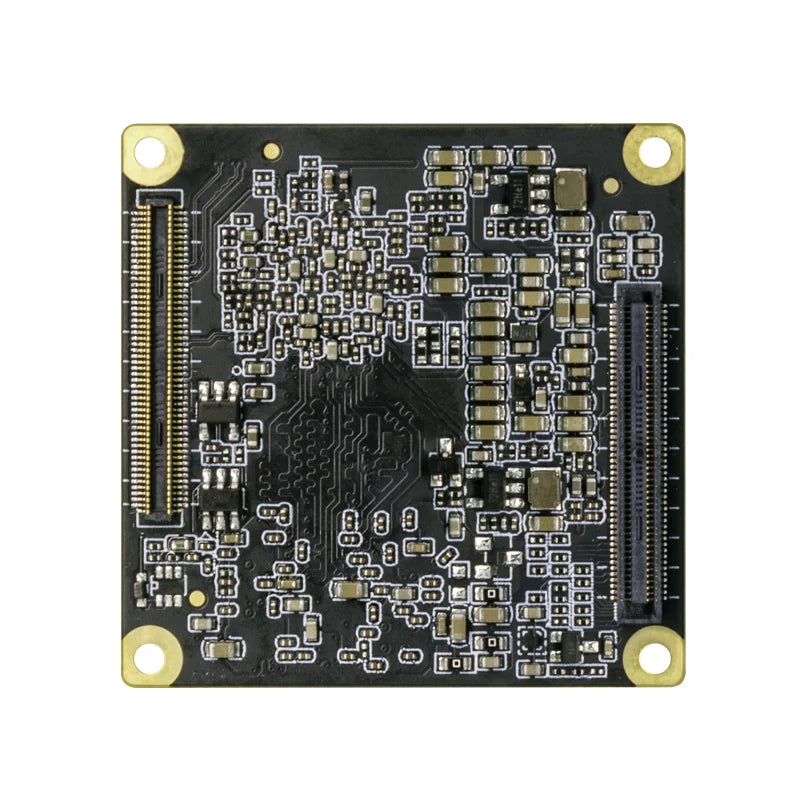

This SoM utilizes a BTB interface design with high-speed industrial-grade connectors, offering exceptional transmission capabilities, high-frequency stability, and solder-free convenience. With dimensions of just 38mm × 38mm, it saves valuable space while delivering powerful performance.

Application Scenarios

Widely used in edge computing, private deployment of large models, machine vision, industrial cameras, industrial control hosts, automotive electronics and other industries.

Edge Computing
Edge Computing
Private Deployment of Large Models
Private Deployment of Large Models
Machine Vision
Machine Vision
Industrial Camera
Industrial Camera
Industrial Control Host
Industrial Control Host
Automotive Electronics
Automotive Electronics

Interfaces

Interfaces

Specifications

ICORE-3576JQ38
Basic Specifications SOC

Rockchip RK3576J
CPU

Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz
GPU

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware
ISP

Built-in 16 million pixel ISP, support low-light noise reduction, support RGB-IR sensor, support up to 120dB HDR, AI-ISP to improve low-noise image effect
NPU

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism
AI performance

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma series, ChatGLM series, Qwen series, Phi series and other large language models.
It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators.
Support Docker container management technology.
It supports the real-time object detection algorithm YOLO (You Only Look Once), which is fast and real-time compared with traditional object detection methods, and can accurately identify and locate multiple target objects in images or videos, powering AI applications.
Decoding/ Encoding

Decoding: 8K@30fps/4K@120fps (VP9, AVS2, AV1), 4K@60fps (H.264/AVC)
Encoding: 4K@60fps (H.264/AVC)
Image codec: 4K@60fps MJPG
RAM

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB optional)
Storage

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Optional)
OS

It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios.
Support Android14, Linux OS, Buildroot, provide a safe and stable system environment for product research and production.
It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications
Power

5.0V (voltage tolerance ± 5%)
Interface type

BTB (2 × BTB Socket(100Pin))
Dimension

38.0mm × 38.0mm × 5.68mm
Weight

≈10g
Environment

Operating temperature: -40℃～85℃, Operating humidity: 10%～90%RH (non-condensing)
Interface Specifications Network

2 × GMAC (providing RMII or RGMII interfaces to connect external Ethernet PHY; Supports 10/100/1000 Mbps speeds), expandable WiFi, Bluetooth, 4G, 5G through USB, PCIE, SDIO, UART
SATA/PCIe

1 × PCIe 2.1/SATA 3.1/USB 3.2 Gen1 Combo interfaces
1 × PCIe 2.1/SATA 3.1 Combo interfaces
Video input

2 × MIPI DPHY CSI (Supports MIPI V1.2 version; 1 × 4 Lanes or 2 × 2 Lanes)

1 × MIPI DCPHY CSI RX (DPHY supports V2.0 version with 4Lane/2Lane/1Lane modes; CPHY supports V1.1 version with 0/1/2 Trio modes)
Video output

1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz, supports 1Lane/2Lane/4Lane modes)

1 × DP1.4 (4096×2160@120Hz)

1 × EBC Output interface (support E-ink EPD (Electronic Paper Display), 2560×1920)
Audio output

4 × SAI (4T/4R), supports I2S/TDM/PCM mode, and supports sampling rates up to 192KHz
USB

1 × USB3.2 Gen1 OTG0 (multiplexed with DP1.4)
1 × USB3.2 Gen1 OTG1 (multiplexed with PCIe 2.1/SATA 3.1)
SDIO

2 × SDIO3.0
PWM

14 × PWM
SPI

4 × SPI (Supports serial master and serial slave modes, software configurable)
I2C

9 × I2C (Supports 7-bit and 10-bit address modes, data rates up to 100kbps in standard mode and up to 400kbps in fast mode)
I3C

1 × I3C (I2C compliant, SDR mode supported, up to 10 devices supported)
UART

12 × UART (Support automatic flow control mode, support RS485 function)
CAN

2 × CAN FD (Supports 8192 bit receive FIFO)
SARADC

3 × SARADC + 1 × SARADC (boot only), supports 12-bit resolution, up to 1MS/s sampling rate
