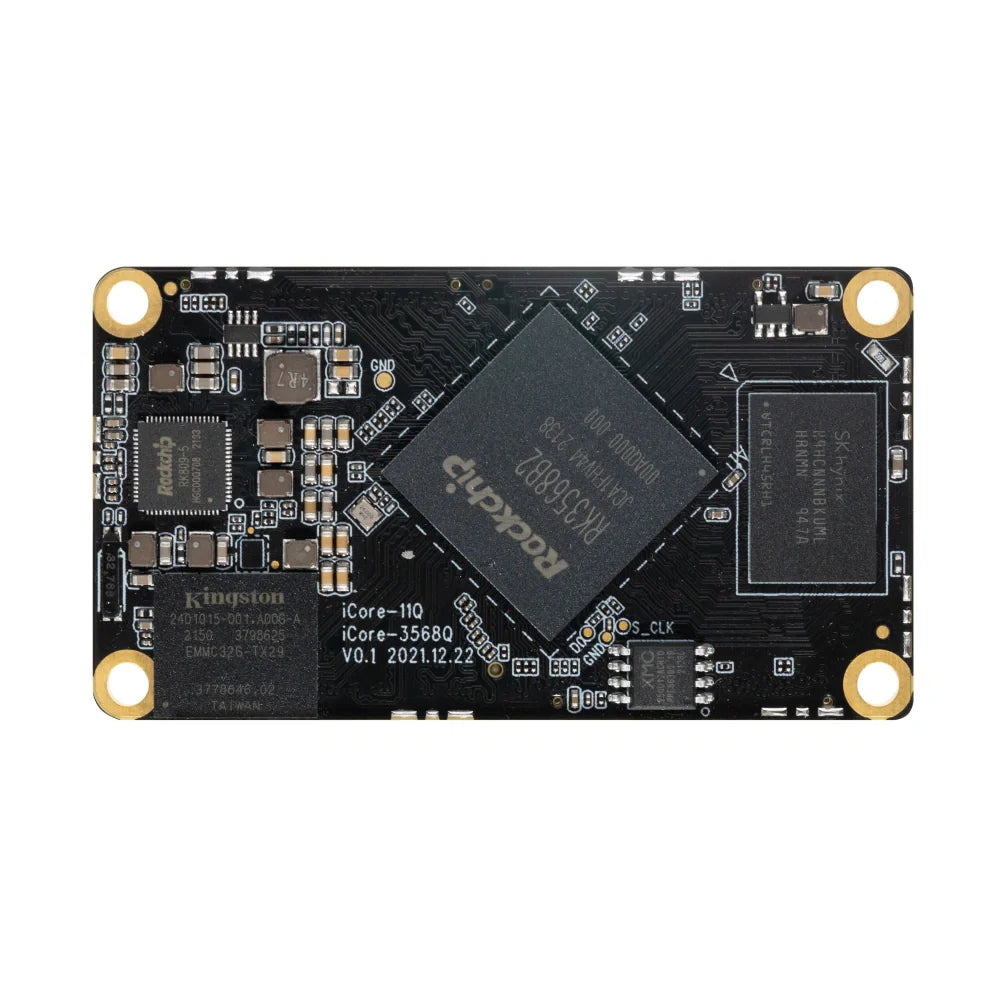

iCore-3568Q

Rockchip RK3568B2

Rockchip RK3568J

Rockchip RK3568M

Quad-core 64-bit Cortex-A55 processor, 22nm lithography process, up to 2.0GHz

Quad-core 64-bit Cortex-A55 processor, 22nm lithography process, up to 1.4GHz

Quad-core 64-bit Cortex-A55 processor, 22nm lithography process, up to 1.6GHz

ARM G52 2EE, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware

Supports 8M ISP, support HDR

Integrated high-performance AI accelerator RKNN NPU, 1.0Tops@INT8(Commercial), 512MAC NPU(Industrial and Automotive)

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

4K@60fps H.264/VP9 video encoding(or 8CH 1080P 30fps multi-format decoding)

1080P@60fps H.264 video encoding

LPDDR4 (1GB/2GB/4GB/8GB optional)

eMMC (8GB/16GB/32GB/64GB/128GB optional)

Android and Linux OS

5V (voltage tolerance ± 5%)

Min: 0.025W(5V/5mA)

Normal: 1.65W(5V/330mA)

Max: 5.75W(5V/1150mA)

Min: 0.025W(5V/5mA)

Normal: 2.3W(5V/460mA)

Max: 6W(5V/1200mA)

Min: 0.025W(5V/5mA)

Normal: 2.5W(5V/500mA)

Max: 6.5W(5V/1300mA)

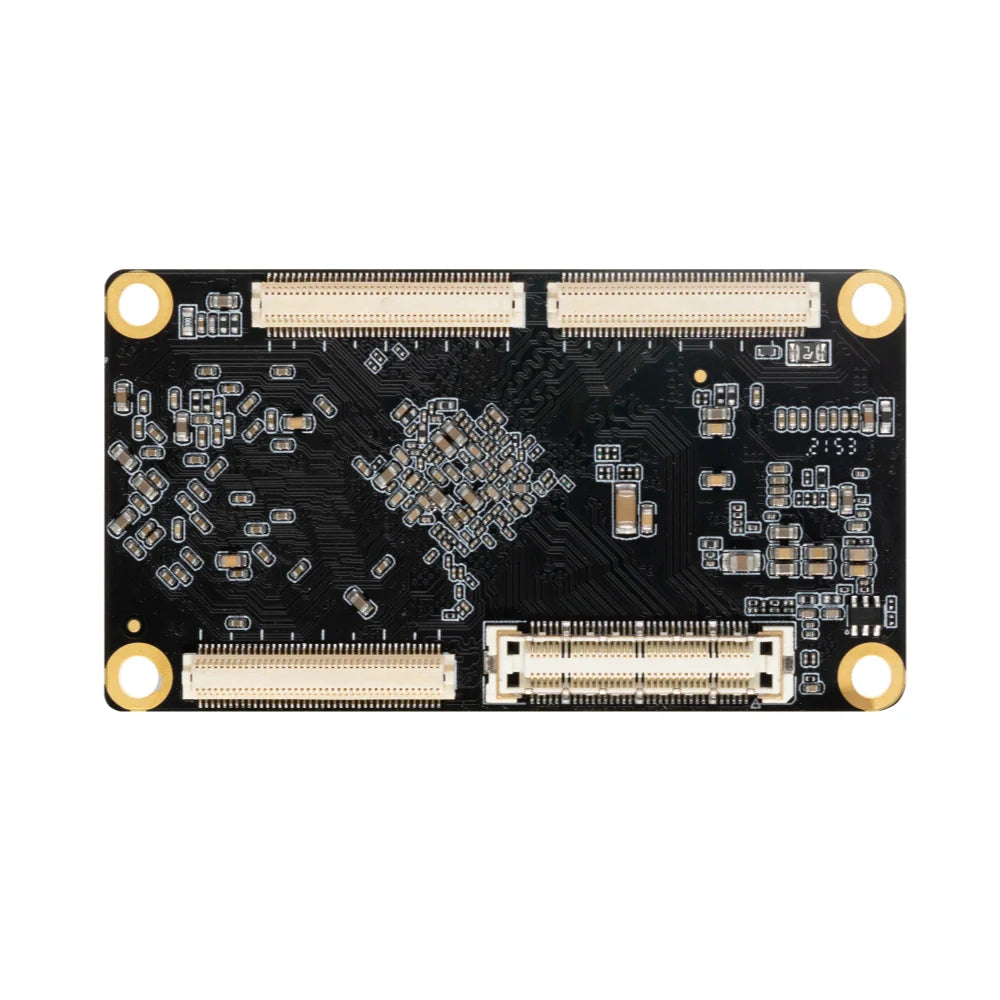

BTB connector (1×60Pin + 3×80Pin)

66mm × 36.5mm

≈20g

Operating temperature: -20℃～60℃

Storage humidity: 10%～90%RH(non-condensing)

Operating temperature: -40℃～85℃, Storage humidity: 10%～90%RH(non-condensing)

2 × GMAC, providing RGMII/RMII interface, supporting 10/100/1000Mbps data transfer rate

Expandable WiFi6/Bluetooth via SDIO3.0/PCIe3.0 interface

Expandable 5G/4G LTE via USB3.0 interface

2 × PCIe3.0 (2Lanes), 1 × PCIe2.1 (1Lane, multiplexed with SATA3.0 and USB3.0)

1 × MIPI-CSI (1×MIPI CSI(4Lanes) or 2×MIPI-CSI(2Lanes)

1 × DVP

1 × HDMI2.0 (4K@60Hz)

2 × MIPI-DSI (support 1920×1080@60fps or dual-channel 1 × MIPI-DSI 2560×1440@60fps)

1 × eDP1.3 (support 2560×1600@60fps)

1 × RGB display interface (1920×1080@60Hz)

1 × Single LVDS LCD screen display interface

* It can support up to three different display outputs

3 × SATA3.0 (Multiplexed with PCIe2.1 and USB3.0)

2 × USB3.0 (Multiplexed with PCIe2.1 and SATA3.0), 2 × USB2.0 HOST

3 × SDMMC, 3 × SPI, 10 × UART, 6 × I2C, 16 × PWM, 7 × ADC, 3 × CAN, 125 × GPIOs
