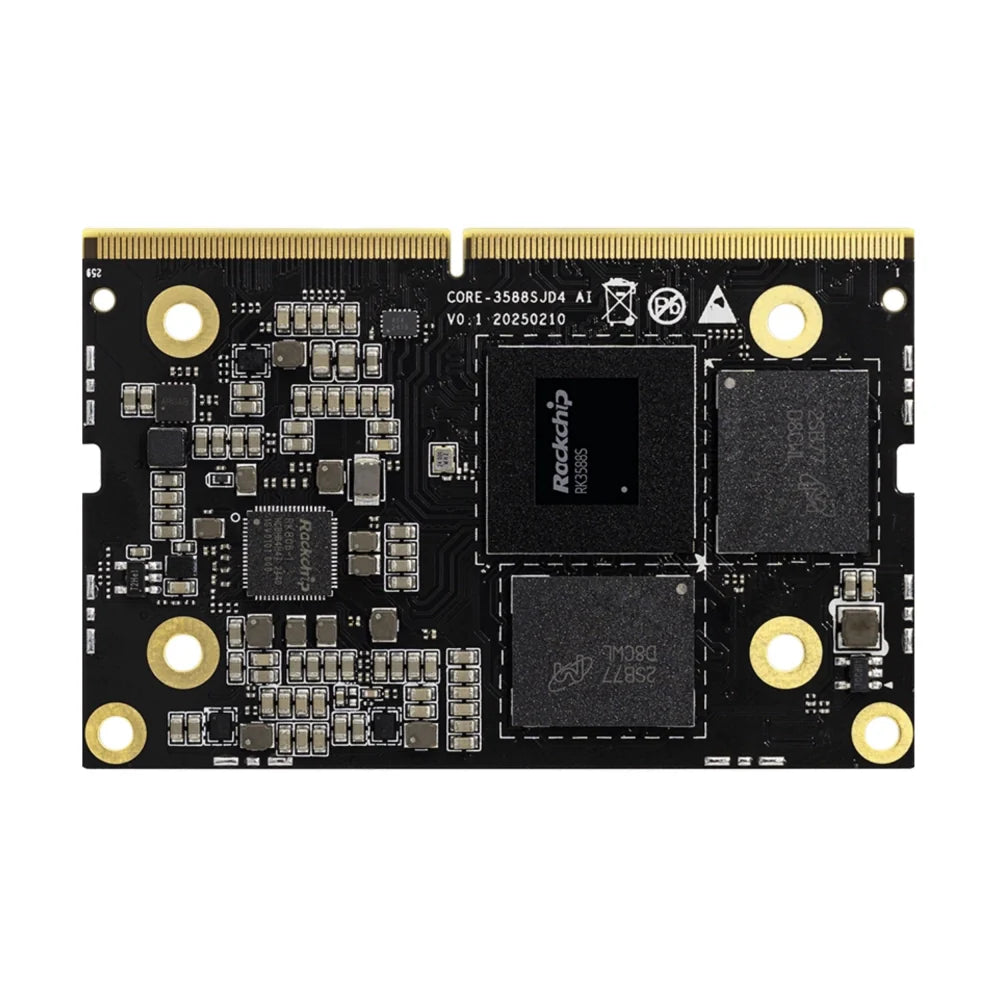

Core-3588SJD4 AI

Rockchip RK3588S

Octa-core 64-bit (4× Cortex-A76 + 4× Cortex-A55), 8nm advanced process, with a frequency of up to 2.4GHz

ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS

6 TOPS, support INT4/INT8/INT16/FP16 hybrid computing

Video decoding: 8K@60fps VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding: 8K@30fps H.264

4GB/8GB/16GB/32GB 64-bit LPDDR5

16GB/32GB/64GB/128GB eMMC

2 × SATA3.0 (Multiplexed with PCIe 2.1, one multiplexed with USB3.1 (Gen1) HOST)

5V (voltage tolerance ±5%)

2 × I2S (2ch, TX and RX supported, audio resolution 16~32 bits,
sample rate up to 192KHz)
2 × SPDIF (Supports 2×16bit audio data storage
and dual-phase stereo output)
2 × PDM (8ch, up to 8 channels, audio resolution 16 ~ 24 bits,
sample rate up to 192KHz, support PDM master receive mode,
support multi-MIC array)

Android, Ubuntu Desktop, Ubuntu Server, Debian, Buildroot, RTLinux, Kirin Linux

• Supports UEFI boot mode

69.6mm × 45.0mm × 4.2mm

≈17g

Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Operating Humidity: 10%～90%RH(non-condensing)

Integrated GMAC/SDIO3.0/USB3.0 interface,
support 1 Gigabit Ethernet,
expandable WiFi6/Bluetooth, 5G/4G LTE

SODIMM (260 PIN, 0.5mm pitch)

1 × USB3.1(Gen1) OTG, 1 × USB3.1(Gen1) HOST (Multiplexed with SATA and PCIe), 2 × USB2.0 HOST, 1 × USB2.0 OTG

2 × ADC (12-bit single-ended input SAR-ADC
with sampling rate up to 1MS/s)

3 × CAN 2.0B (Support CAN standard frame and extended frame transceiver and receiver)

10 × UART (Built-in 2×64-bit FIFOs for TX and RX, respectively; Supports 5-bit, 6-bit, 7-bit,
and 8-bit serial data transmission and receiving, with baud rates up to 4Mbps; UART supports auto-flow mode)

4 × SPI (Each controller supports 2 chip select outputs;
Support serial master and serial slave modes,
software configurable)

9 × I2C (Supports 7-bit and 10-bit address modes,
data transfer rates up to 100k bits/s in standard mode and up to 400k bits/s in fast mode)
