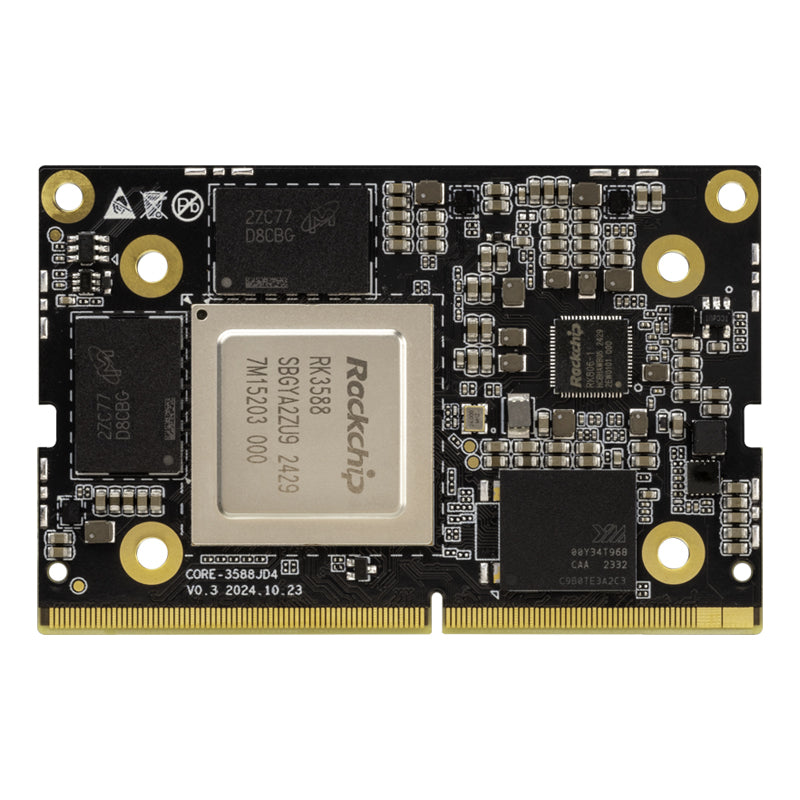

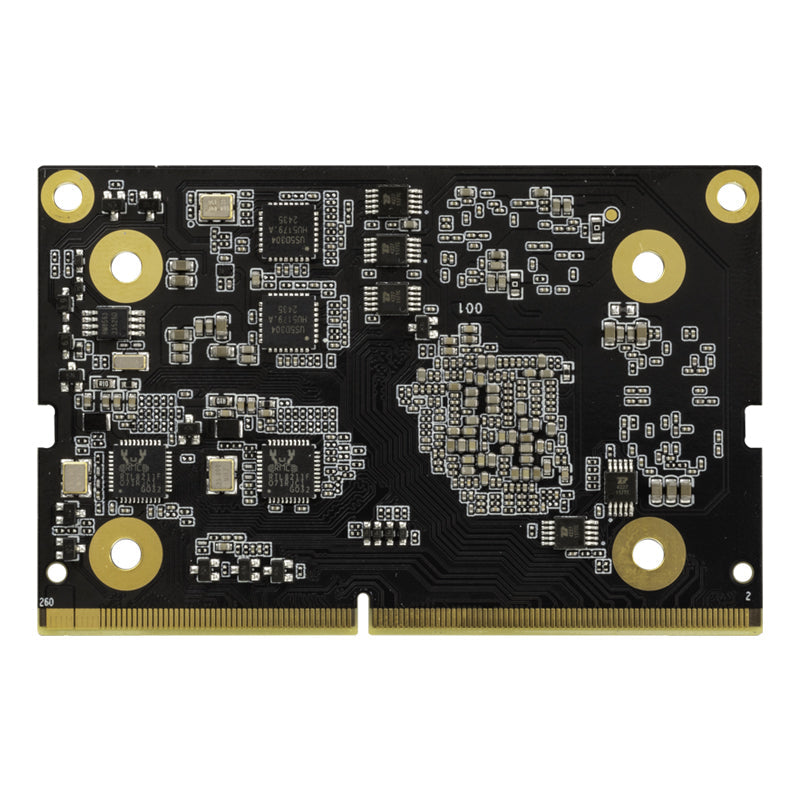

Core-3588JD4 RK3588 System on Module

Core-3588JD4 RK3588 System on Module

$269.00

Taxes included. Shipping calculated at checkout.

Storage:4G RAM+32G ROM 4G RAM+32G ROM 8G RAM+64G ROM 16G RAM+256G ROM 32G RAM+256G ROM

Manual WikiDownload

Brand Firefly

Availability

98 in stock

Description
Specifications
Documents
Shipping Information

Core-3588JD4 is equipped with Rockchip's flagship processor RK3588, an eight-core 64-bit CPU that can provide 6TOPS of computing power to improve performance for AI application scenarios.

Product Datasheet: Click Here
Product Wiki: Click Here

Feature

Custom Private Deployment of AI Models: Supports private deployment of rich parameter models based on the Transformer framework, including Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, Phi-3-3.8B and other rich language models.
Decoding of 8K Ultra-High Definition Video: It realizes 8K high-definition video decoding, with clearer picture quality and richer details, and the 2D hardware engine significantly improves display performance.
32 GB of Massive Memory: Core-3588JD4 breaks through the previous limitations of memory capacity, provides faster response speed, and meets the needs of applications that require large amounts of memory and large storage capacity.
Industrial-Grade Stability: Support external watchdog, industrial-grade stability. Compatible with multiple operating systems, suitable for ARM PC, edge computing, cloud server, smart NVR and other fields.

Hardware Overview

Soc	Rockchip RK3588
Cpu	Octa-core 64-bit processor (4×Cortex-A76+4×Cortex-A55), main frequency up to 2.4GHz
Gpu	ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu	The computing power is up to 6TOPS(INT8), support INT4/INT8/INT16 mixed operations
Vpu	Decoding: 8K@60fps VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 Encoding: 8K@30fps H.264
Ram	LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB)
Storage	eMMC (32GB/64GB/128GB/256GB optional)
Pcie	1 × PCIe3.0 (2 × 2 lanes, 1 × 4 lanes, 4 × 1 lanes), 3 × PCIe 2.1 (1 lane)
Sata	3 × SATA3.0 (Multiplexed with PCIe 2.1)
Power	5V (voltage tolerance ± 5%)
Power consumption	Max: 13W(5V/2600mA), Normal: 2.8W(5V/560mA), Min: 0.175W(5V/35mA)
Video output	1 × HDMI2.1 TX/eDP1.3 TX (8K@60Hz, HDMI supports HDCP2.3; upports eDP1.3, 4K@60Hz, supports HDCP1.3; HDMI and eDP cannot work at the same time)
Video input	MIPI CSI (2 × 4Lanes/4 × 2Lanes/1 × 4Lanes + 2 × 2Lanes)
Audio output	2 × I2S (2 channels), 2 × SPDIF, 1 × PDM (8 channels, support multi-MIC array)
Os	Android, Linux OS
Software support	Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B, and other large language models It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; it also supports a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX, and Darknet. It also supports the development of custom operators Supports Docker container management technology
Dimension	69.6mm × 45.0mm × 4.6mm
Weight	≈18g
Environment	Operating Temperature: -20℃～60℃ Storage Temperature: -20℃～70℃ Storage Humidity: 10%～90%RH(non-condensing)
Watchdog	Independent watchdog
Internet	2 × Gigabit Ethernet (MDI interface is provided, and the core board has an onboard Ethernet PHY chip) Expandable WiFi6/Bluetooth 5.2 via SDIO3.0/PCIe3.0 Expandable 5G/4G LTE via USB3.1 (Gen1)/USB2.0
Interface type	SODIMM (260 PIN, 0.5mm pitch)
Usb	2 × USB3.1（Gen1）OTG, 1 × USB3.1（Gen1）HOST, 2 × USB2.0 HOST, 2 × USB2.0 OTG

Product tutorials	Click Here
Product datasheet	Click Here
