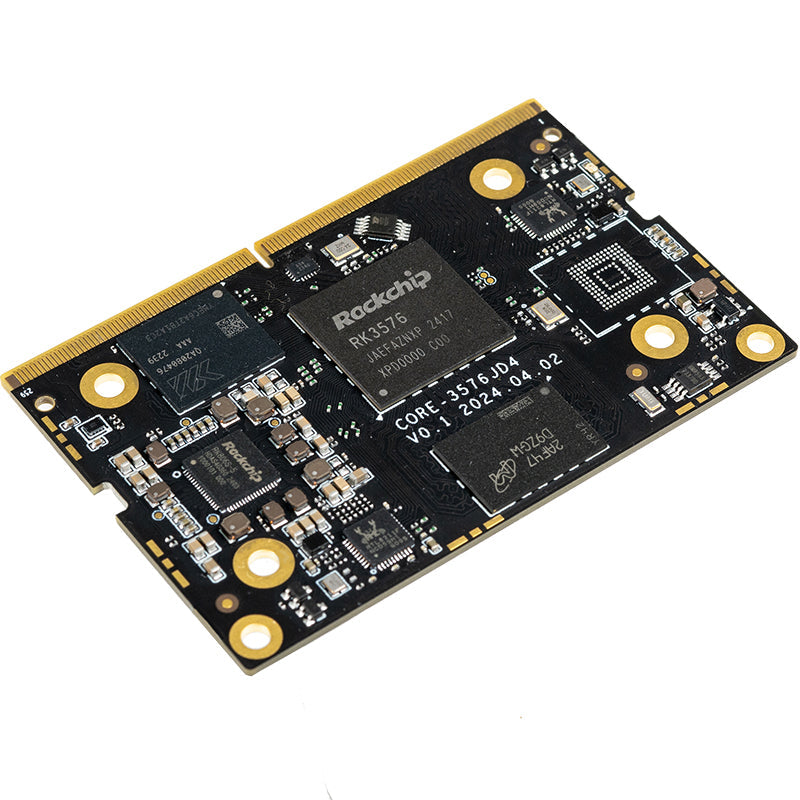

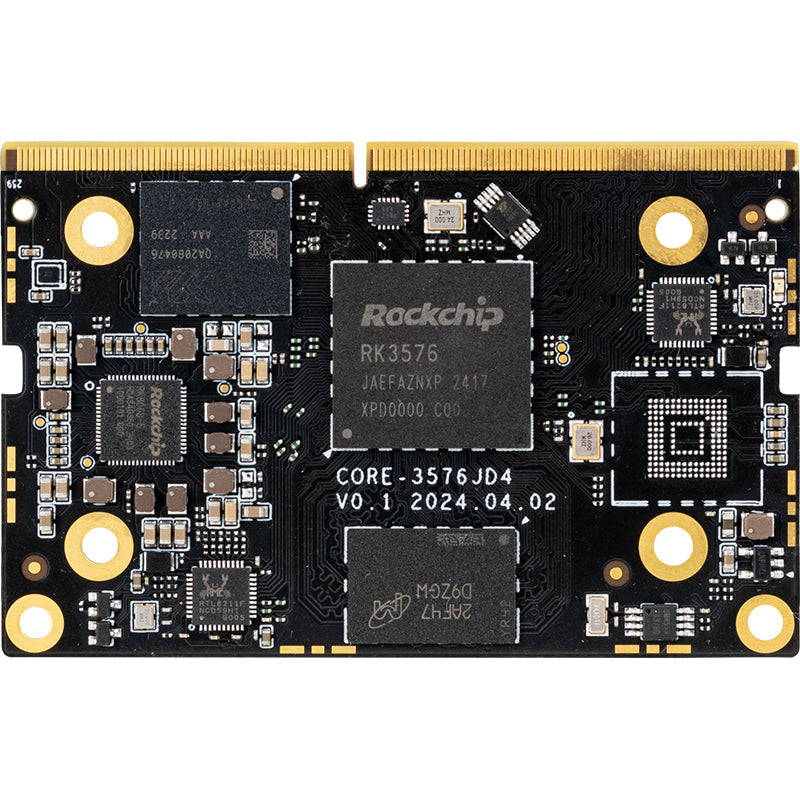

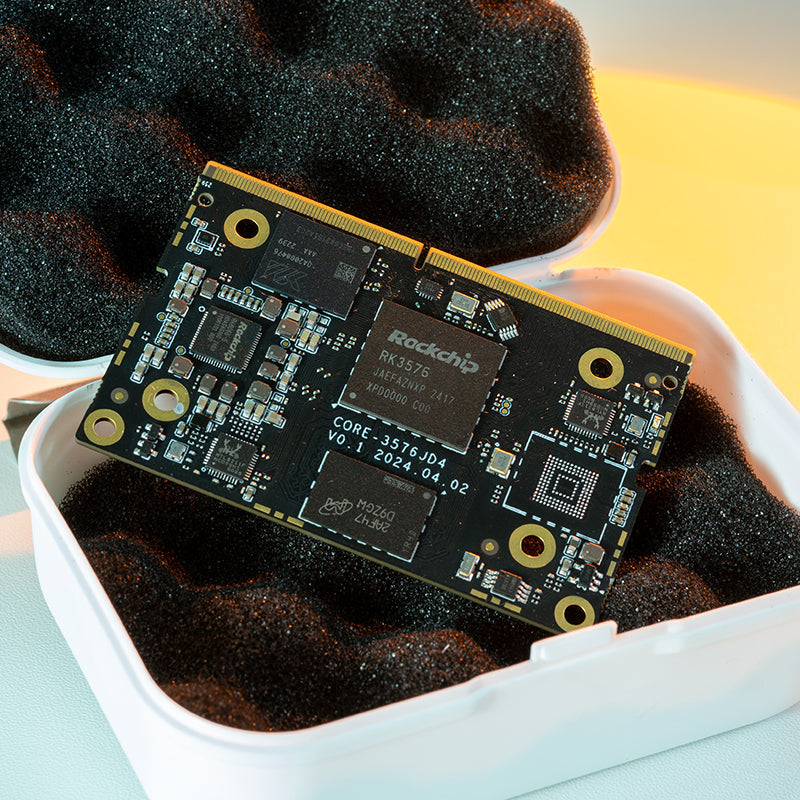

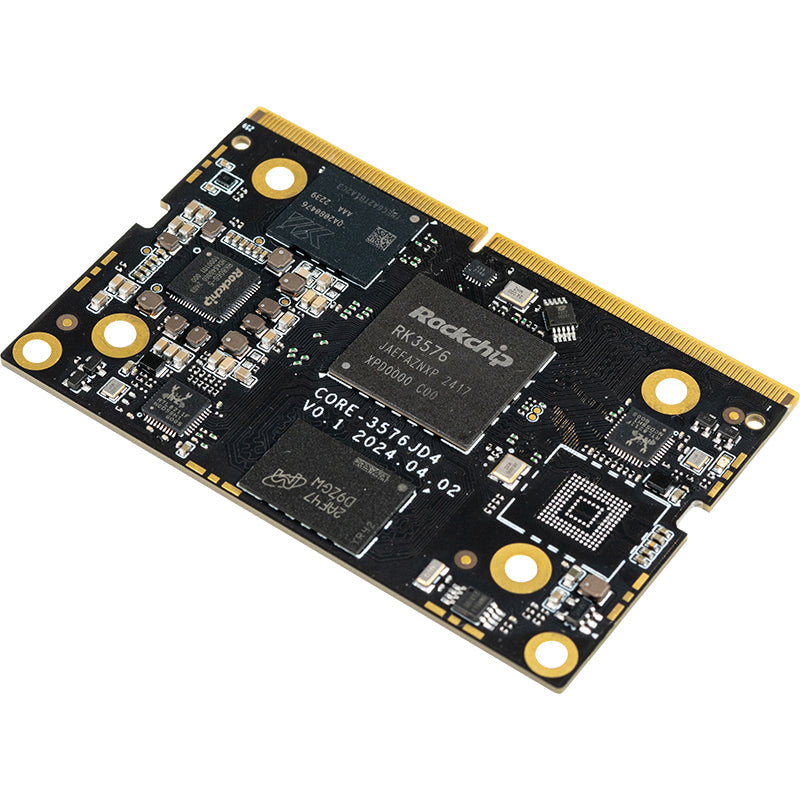

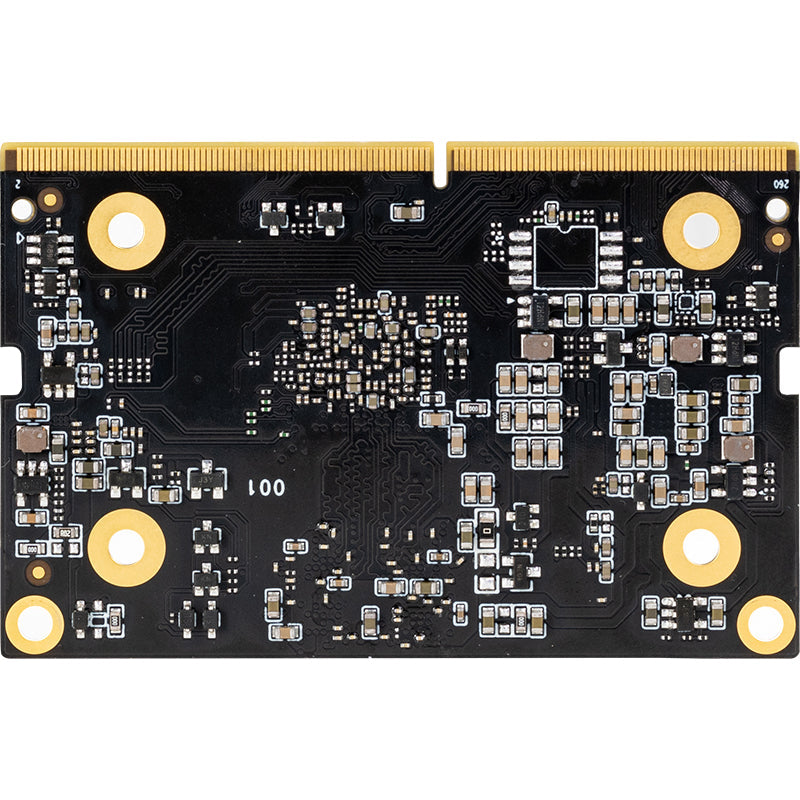

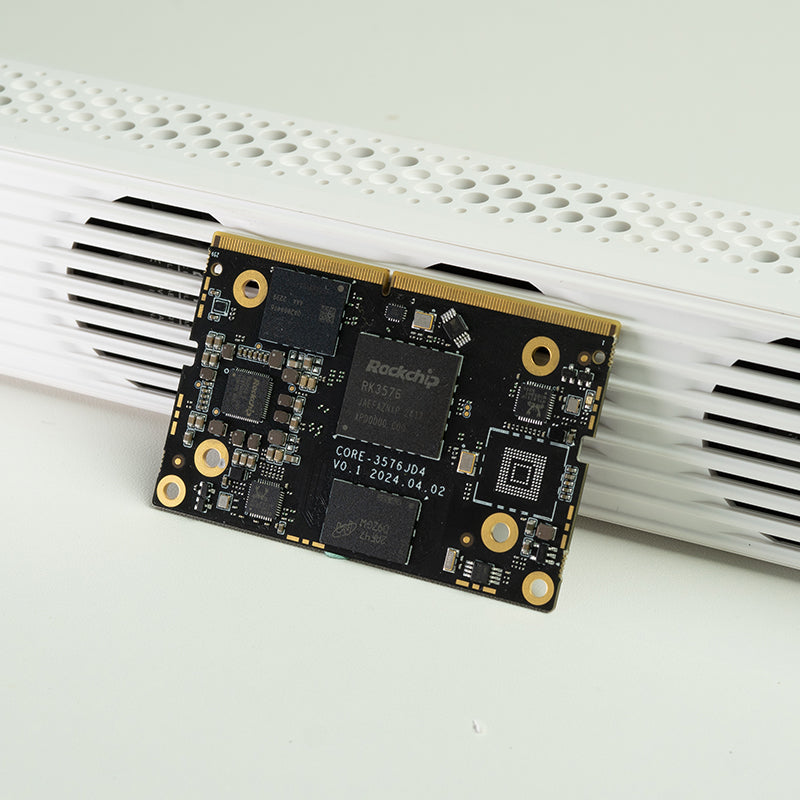

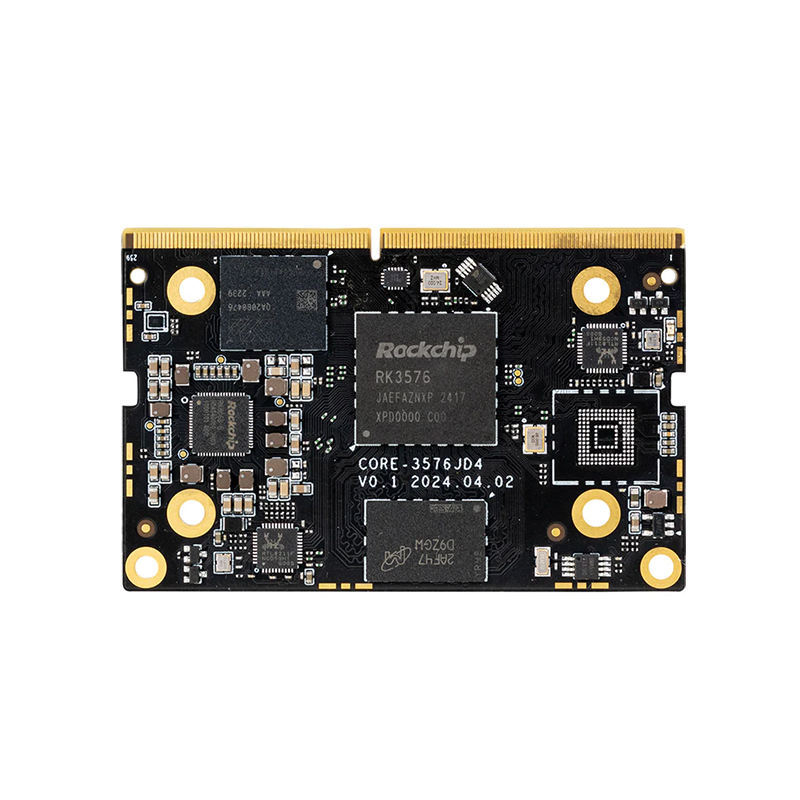

Core-3576JD4 AIOT System on Module

Core-3576JD4 AIOT System on Module

$269.00

$269.00 $149.00

Taxes included. Shipping calculated at checkout.

Storage:8G RAM+64G ROM 4G RAM+64G ROM 8G RAM+64G ROM 8G RAM+64G ROM (Industrial Grade) 16G RAM+128G ROM

Manual WikiDownload

Brand Firefly

Availability

10 in stock

Description
Specifications
Documents
Shipping Information

Soc	Rockchip RK3576
Cpu	Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz
Gpu	G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware
Npu	6 TOPS NPU, support mixed operations of INT4/8/16/FP16/BF16/TF32
Vpu	Decoding: 8K@30fps/4K@120fps ( VP9, AVS2, AV1), 4K@60fps (H.264/AVC) Encoding: 4K@60fps ( H.264/AVC)
Ram	LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB optional)
Storage	eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Optional)
Power	5.0V (voltage tolerance ± 5%)
Audio output	2 × SAI (4T/4R), 3 × SAI (1T/1R), supports I2S/TDM/PCM mode and supports sampling rates up to 192KHz 2 × SPDIF TX & RX (8ch) 2 × PDM (Up to 8 channels, audio resolution 16~24 bits, sample rate up to 192KHz, support PDM master receive mode)
Os	Android14, Linux OS, Buildroot
Dimension	69.6mm × 45mm × 4.15mm
Weight	≈16g
Environment	Operating Temperature: -20℃ ~ 60℃, Storage Temperature: -20℃ ~ 70℃, Storage Humidity: 10%～90%RH (non-condensing)
Internet	2 × Gigabit Ethernet (MDI interface is provided, and the core board has an onboard Ethernet PHY chip) Expandable WiFi6/Bluetooth 5.2 via SDIO3.0/PCIe3.0 Expandable 5G/4G LTE via USB3.2 Gen1/USB2.0
Interface type	Golden finger (260 PIN, SODIMM, 0.5mm pitch)
Usb	1 × USB3.2 Gen1 OTG0 (multiplexed with DP1.4) 1 × USB3.2 Gen1 OTG1 (multiplexed with PCIe 2.1/SATA 3.1)
Pwm	16 × PWM
Can	2 × CAN FD (Supports 8192 bit receive FIFO)
Uart	12 × UART (Support automatic flow control mode, support RS485 function)
Spi	5 × SPI (Supports serial master and serial slave modes, software configurable)
I2c	10 × I2C (Supports 7-bit and 10-bit address modes, data rates up to 100kbps in standard mode and up to 400kbps in fast mode)
Sdio	1 × SDIO3.0

Product tutorials	Click Here
Product datasheet	Click Here
