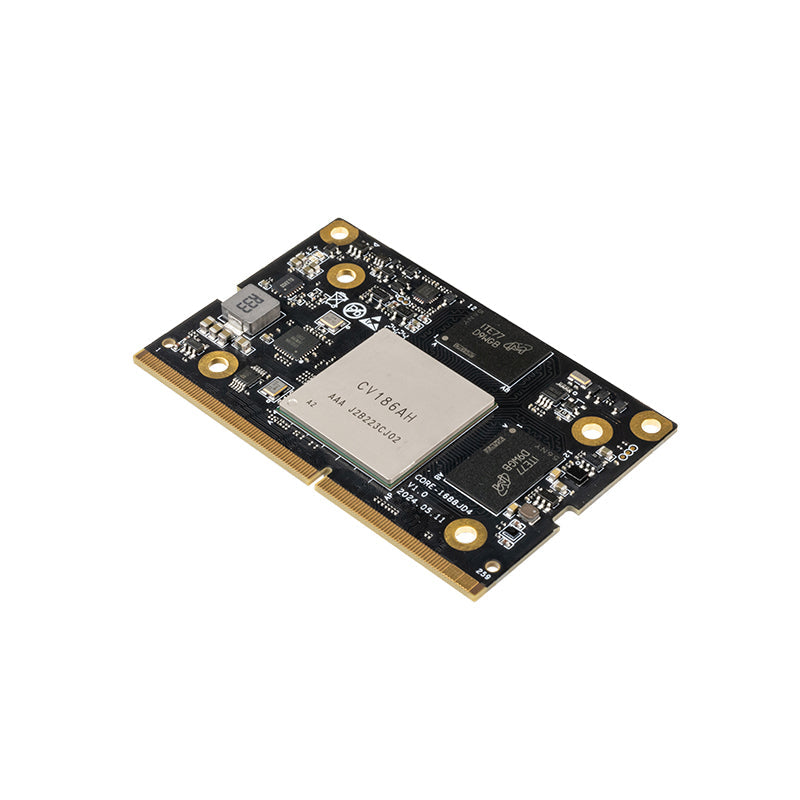

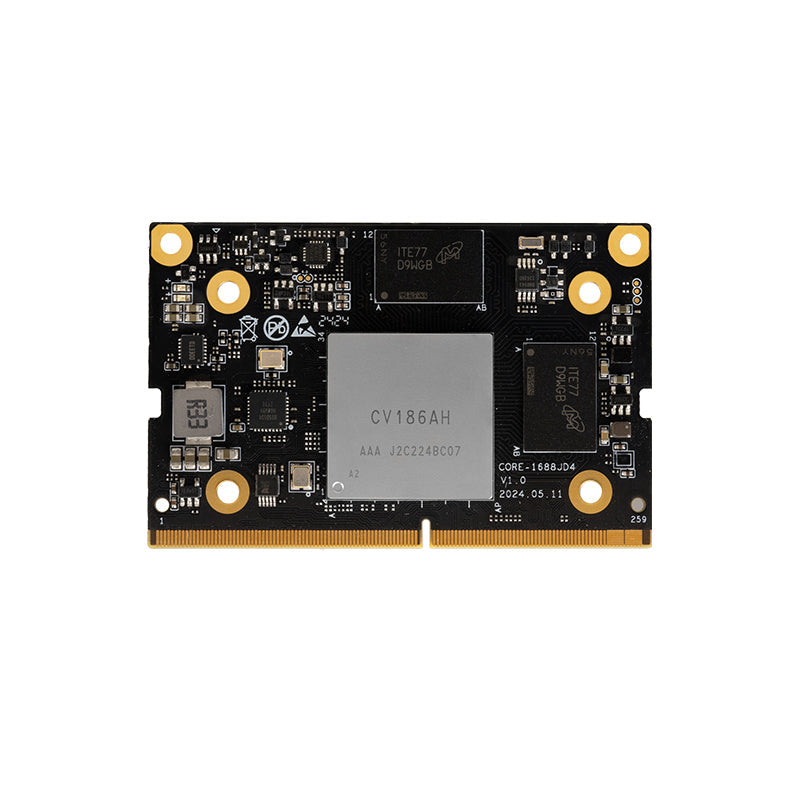

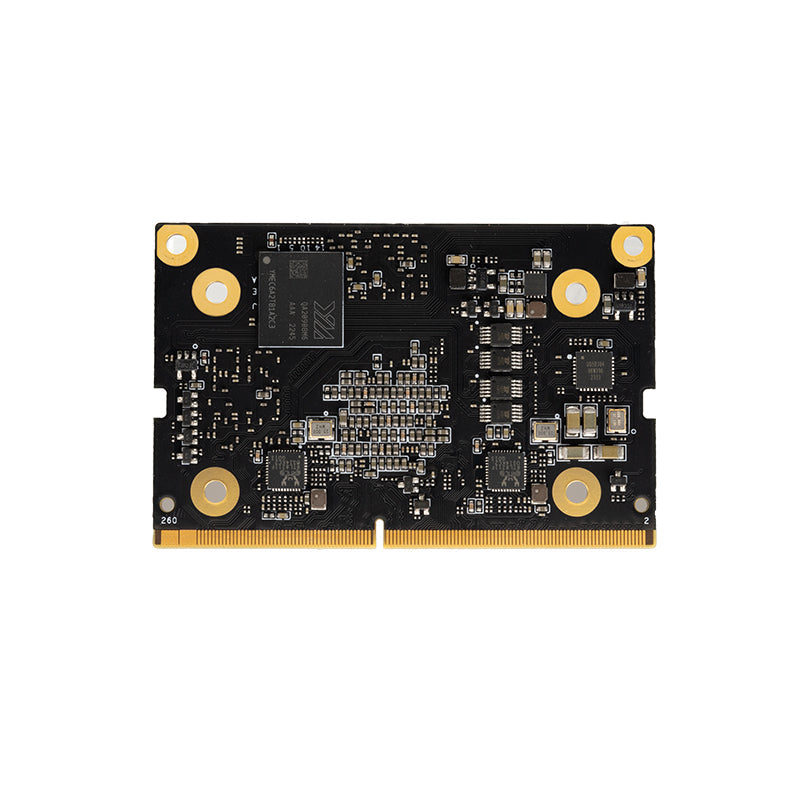

Core-186JD4 six-core AI System on Module CV186 SOPHON

SOPHON CV186AH

Hexa-core 64-bit ARM Cortex-A53 @ 1.6GHz

Built-in SOPHGO neural network acceleration engine TPU, computing power up to 7.2T@INT8, 12T@INT4, 1.5T@FP16/BF16

7.2TOPS

Video decoding: H.264 decoding (maximum performance: 1920×1080@480fps or 8192×4320@30fps)
Video encoding: H.264 encoding (maximum performance: 1920×1080@300fps or 8192×4320@15fps)
Image codec: JPEG/MJPEG Baseline codec (JPEG codec: 1080P@480fps, maximum resolution 32768×32768)

4GB LPDDR4(4GB/8GB optional)

32GB eMMC(32GB/64GB/128GB/256GB optional)

5V (voltage tolerance ± 5%)

Integrated Audio CODEC supports 16-bit source/voice input and output
Support two dual-channel microphone inputs, support two-channel two-channel microphone output (external amplifier
is required to push the speaker)
It supports connecting to an external Audio CODEC via I2S/PCM/TDM interface, I2S mode supports up to 4-channel stereo input,
and the built-in Audio PLL supports MCLK output

Linux OS（Ubuntu）

69.6mm × 45.0mm

≈20g

Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Storage Humidity: 10%～90%RH(non-condensing)

2 × Gigabit Ethernet (MDI interface is provided, the core board has an onboard Ethernet PHY chip),
WiFi/Bluetooth can be expanded through SDIO, and 5G/4G wireless network can be expanded through USB3.0/USB2.0

Goldfinger (260 PIN, SODIMM, 0.5mm pitch)

2 × USB3.1/USB2.0 Host/Device

5 × single-ended ADC (2 no die domain)

20 × PWM (support up to 50MHz (100MHz/2) output, down to about 0.093Hz (100MHz/(2^30-1)))

2 × CAN 2.0 (Support CAN2.0 A/B ISO11898 and CAN FD 1.1）

9 × UART (1 no die domain)

11 × I2C (1 no die domain)

2 × SD3.0/SDIO3.0 (support 1-bit/4-bit mode)
