CAM-8MS1M (IMX415) is a 1/2.8-inch industrial-grade high-definition wide dynamic sensor suitable for various complex light environments. MIPI standard interface supports 7x24 hours of uninterrupted operation. It is mainly used in face recognition access control, face recognition attendance, gate machines, identification machines and other scenarios.
- Product Wiki: Click Here
Product Parameters
| Camera | CAM-8MS1M(IMX415) |
| CMOS Sensor | 1/2.8 sensor/RGB |
| Max Resolution | 3840(H) x 2160(V) (16:9 mode) |
| Sensor Pixel Size | 1.45um x 1.45um |
| Low Lux | ≤0.5Lux/F2.0 |
| Image Transmission Rate | 3840x2160/60fps |
| SNR | TBD |
| WDR | TBD |
| FOV | D:120.3° H: 111° V: 76.4° |
| Aperture | F2.0 |
| FOV | H: 84°V: 50° |
| Aperture | F2.0 |
| Focal Length | 1.95mm |
| Distortion | TV Distortion<-3.3% |
| Lens CRA | TBD |
| Lens Temperature Range | -20° /+60° |
| Lens Structure | 1G5P |
| IR | NC |
| Power Supply | 5V,Ripple not higher than 100mv. |

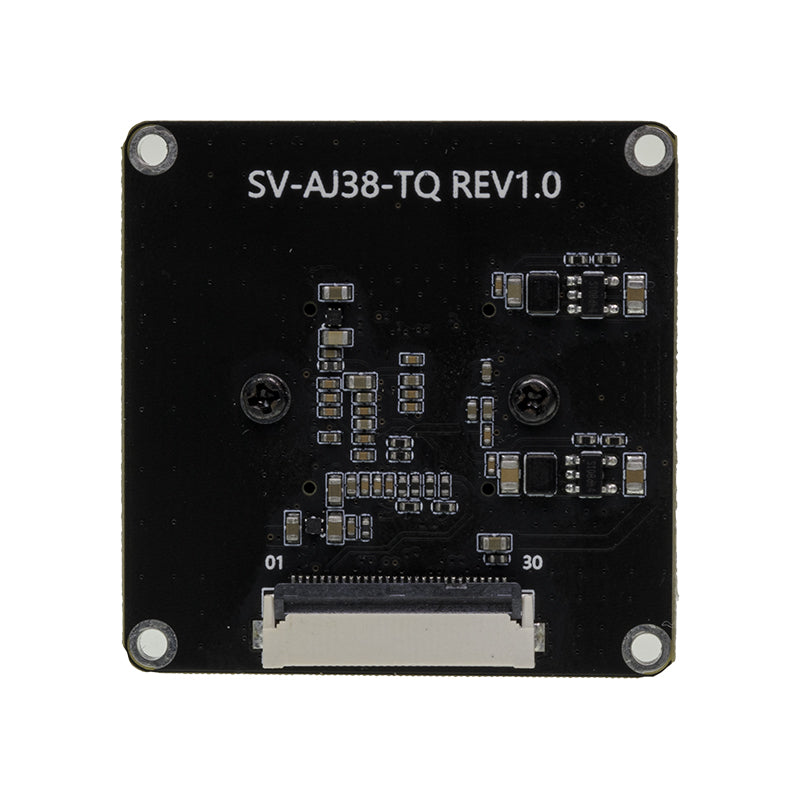

| Connection Way | 0.5mm FPC (SV-AJ38-TQ REV1.0 is 30pins, Board needs to be based on the hardware interface) |
| Power Consumption | TBD |
| Operating Temperature | -10° C ~ +55° C (Humidity : 10%RH ~ 75%RH) |
| Storage Temperature | -20° C~ +65° C (Humidity : 10%RH ~75%RH) |
| Dimension |
|---|
| Product tutorials | Click Here |
|---|---|
| Product datasheet | Click Here |
