4G Module Kit EG25-G

$39.00

Taxes included. Shipping calculated at checkout.

Manual WikiDownload

Brand Firefly

Availability

64 in stock

Description
What's Included
Specifications
Documents
Shipping Information

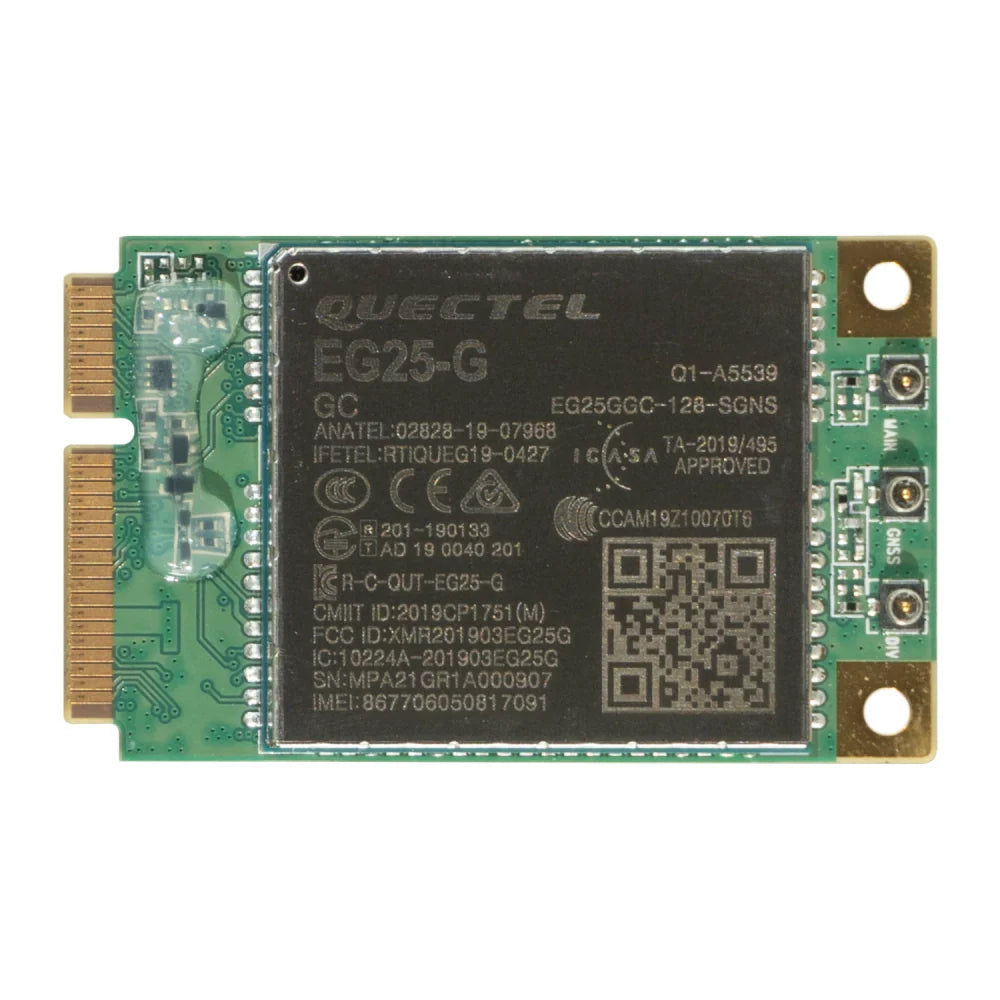

EG25-G is a LTE Cat 4 wireless communication module designed by CTC for M2M and IoT. It adopts 3GPP Rel.11 LTE technology and supports a maximum downlink rate of 150 Mbps and a maximum uplink rate of 50 Mbps. At the same time, the EG25-G package is compatible with FarEasTone UMTS/HSPA+ UC200T series modules. Multi-mode LTE standard EC2x series (EC25 series, EC21 series and EC20-CE)/EC200A series/EG21-G modules can be efficiently designed and switched in real time.

EG25 Product Wiki: Click Here
EG20 Product Wiki: Click Here

Parameters

Working Frequency Band	EG25GLGD/EG25GLGD LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 EC20CEHDLG TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B3/B8 WCDMA: B1/B8 TD-SCDMA: B34/B39 GSM: 900/1800 MHz
Data Transmission	EG25GLGD/EG25GLGD LTE-FDD: Max 150 Mbps(DL) Max 50Mbps(UL) LTE-TDD: Max 130 Mbps(DL) Max30 Mbps(UL) DC-HSDPA: Max 42 Mbps(DL) (UL) HSUPA: Max 5.76 Mbps(UL) WCDMA: Max 384 kbps(DL) Max 384 kbps(UL) EDGE: Max 296 kbps(DL) Max236.8 kbps(UL) GPRS: Max107 kbps(DL) Max 85.6 kbps(UL) EC20CEHDLG TDD-LTE： Max 130Mbps (DL) Max 35Mbps (UL) FDD-LTE： Max 150Mbps (DL) Max 50Mbps (UL) DC-HSPA+： Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS： Max 384Kbps (DL) Max 384Kbps (UL) TD-SCDMA： Max 4.2Mbps (DL) Max 2.2Mbps (UL) CDMA： Max 3.1Mbps (DL) Max 1.8Mbps (UL) EDGE： Max 236.8Kbps (DL) Max 236.8Kbps (UL) GPRS： Max 85.6Kbps (DL) Max 85.6Kbps (UL)
Structure Size	EG25GLGD/EG25GLGD 29.0 mm × 32.0 mm × 2.4 mm Weighs about 4.9 g EC20CEHDLG 51.0mm x 30.0mm x 4.9mm Weight about 10.5 g
Authentication	EG25GLGD/EG25GLGD Deutsche Telekom Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile Telus/Rogers* SRRC/CCC/NAL GCF CE UKCA PTCRB FCC IC Anatel IFETEL KC NCC JATE/TELEC RCM NBTC IMDA ICASA RoHS WHQL EC20CEHDLG CCC/NA*/TA

EC20:

4G LTE Module Kit (Mini-PCle)x1
Nut stud x2
Antenna Cable x1
M2 Screw x 4
5db Antenna x1

EC25:

4G module antenna connection cable x3
Glue stick antenna x3

Dimension	51mm × 30mm × 4.9mm

Product tutorials	Click Here
Product datasheet	Click Here
