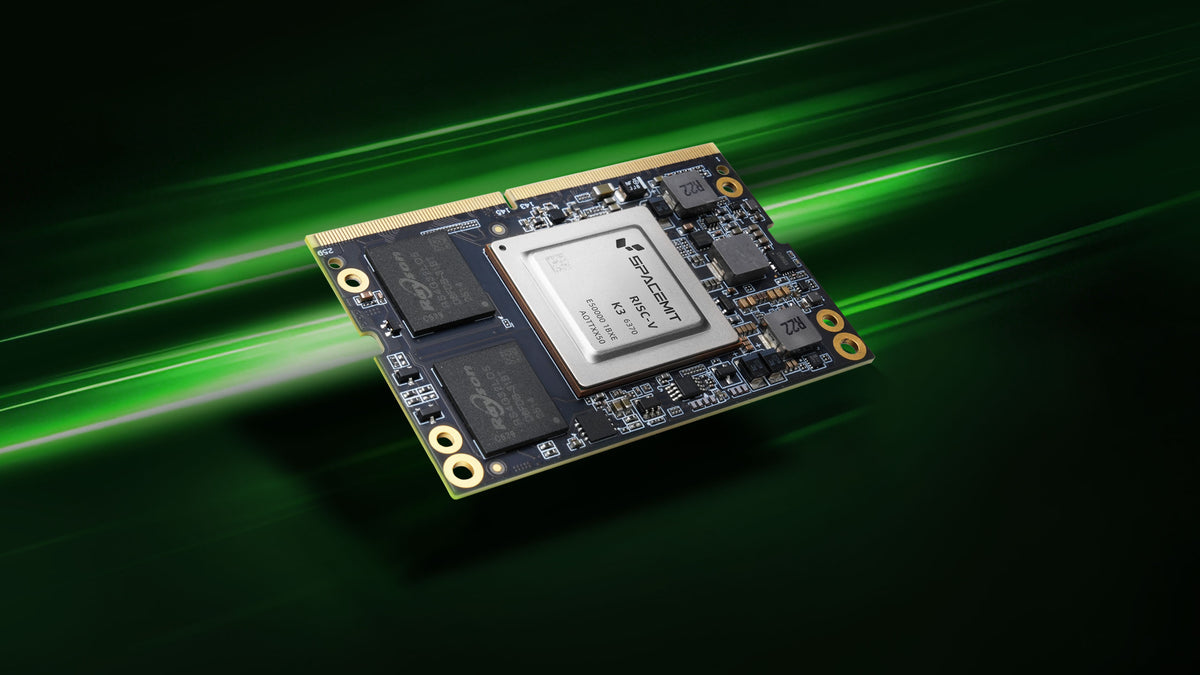

CORE-K3JD4 RISC-V Edge SoM

CORE-K3JD4 is a high-performance edge intelligent computing core module built on SpacemiT's latest-generation RISC-V processor K3. Featuring a CPU+AI core fusion architecture, it delivers both powerful general-purpose computing capability and edge-side AI acceleration. It provides 130K DMIPS of general-purpose compute power and 60 TOPS of general-purpose AI inference power, capable of running large language models with up to 30 billion parameters.

RISC-V Processor K3

Integrates 8 high-performance 64-bit computing big cores X100, with a maximum frequency of 2.4GHz and computing power of 130K DMIPS. It is the world's first processor to fully support the RVA23 Profile, delivering strong performance to meet the demands of high-performance computing and complex application scenarios.

Super Parallel Computing

Integrates 8 ultra-wide parallel computing AI cores A100, delivering 60 TOPS of AI computing power. Supports 1024-bit RVV 1.0 parallel computing and the Vector Crypto standard. Equipped with TCM cache and DMA acceleration, it efficiently improves data processing and transmission performance.

RISC-V Hardware Virtualization

Supports RISC-V hardware virtualization, providing CPU and memory virtualization capabilities through the RVH 1.0 extension, interrupt virtualization capabilities through the RV AIA extension, and peripheral virtualization capabilities through the RV IOMMU extension.

High-Level Defense Technology

Adopts complete RISC-V security architecture with M/S/U three‑level privileges, providing hardware‑level defense against Spectre and Meltdown attacks. Equipped with RISC-V PMP/ePMP and dedicated IOPMP mechanism for high‑level protection. Supports secure boot, secure storage, and signature verification, with integrated hardware encryption (AES/SHA/RSA＆SM2/SM3/SM4) for full lifecycle security management.

32GB LPDDR5 Memory

Supports up to 32GB of high-bandwidth LPDDR5 memory, paired with UFS2.2 high-speed storage, offering larger capacity, higher bandwidth, and lower power consumption for faster data read/write. It meets the requirements for memory capacity and real-time response speed in private deployment of large AI models.

Support 4K Video Codec

Supports 4K@120fps H.264/VP9 high-definition video decoding, enabling smooth playback of high-bitrate ultra-high-definition video streams with clear and stutter-free visuals. It also supports 4K@60fps H.264 hardware video encoding, delivering efficient video compression, recording, and transmission, saving storage space and bandwidth while maintaining excellent image quality.

Native Linux Mainline Kernel

Powered by world's first RVA23-compliant K3 chip, natively supports Linux mainline kernel (v7.0-rc1). Fully compatible with Ubuntu 26.04 and more. Ecosystem compatibility, stability, and long-term maintainability meet mainstream computing platform standards—ready for desktop productivity, edge LLM inference, and edge server deployments.

Rich Expansion Interfaces

Adopts 260-pin gold finger interface, with physical form and electrical pin definitions compliant with the NVIDIA Jetson Orin Nano standard. Features a wide range of expansion interfaces including I2C, I2S, SPI, UART, CAN, PWM, GPIO, PCIe 3.0, USB 3.0, USB 2.0, MIPI-DSI, MIPI-CSI, and DP, meeting peripheral expansion requirements across various scenarios.

Supports Running 30B Large Models

CORE-K3JD4 delivers 60 TOPS of general AI computing power, supports up to 32GB LPDDR5 memory, and is compatible with the RVV instruction set, native FP8 inference, and multimodal acceleration. It can run 30B-parameter large models offline at the edge, with measured throughput exceeding 10 tokens per second for 30B models, enabling efficient on-device private LLM deployment and low-latency intelligent inference.

Application Scenarios

Widely applicable in edge computing, computing power services, data security, AI education, private deployment of large language models, robotics, AI e-commerce and retail, smart home, AI computing server and intelligent vision inspection.

Edge Computing

Computing Power Services

Data Security

AI Education

Private Deployment of Large Models

Smart Home

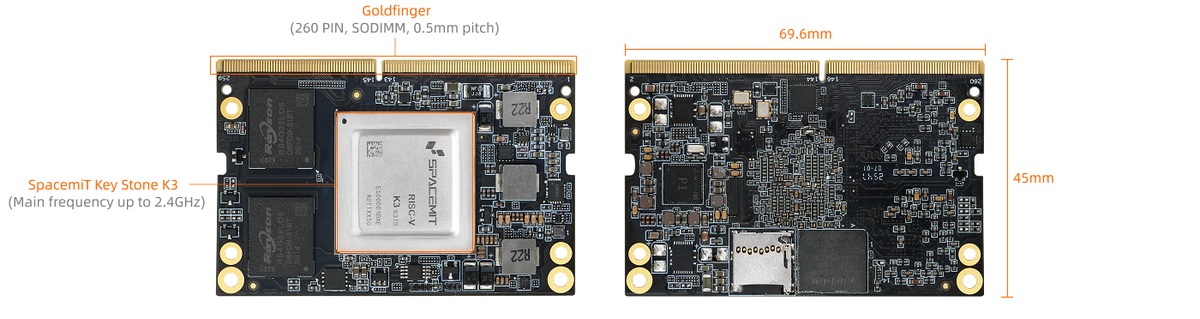

Interfaces

Specifications

CORE-K3JD4
Basic Specifications	SOC	SpacemiT Key Stone K3
	CPU	8-core X100 64-bit RISC-V AI Processor, max main frequency 2.4GHz, 130KDMIPS general computing power, full RVA23 Profile support, single- core Specint2006>9.0/GHz, equivalent to ARM-A76
	GPU	Integrated 3D graphics engine, supporting Vulkan 1.3, OpenCL 3.0, OpenGL ES 1.1/3.2, EGL 1.5
	NPU	60TOPS
	AI performance	8-core A100 delivers 60TOPS AI computing power (SquareINT4), supporting BF16, FP16, FP8, INT8, INT4 and other data formats. Equipped with RVV vector instruction set, native FP8 inference and multi-modal algorithm acceleration, it supports 30B local models, with inference performance exceeding 10Tokens/S@30B, and adapts to various AI algorithms and model deployment.
	Video decoding	4K@120fps H.265/H.264/VP9
	Codec	Video decoding: 4K@120fps H.264/VP9 Video encoding: 4K@60fps H.264
	RAM	8GB/16GB/32GB LPDDR5
	Storage	128GB/256GB/512GB UFS2.2
	OS	Ubuntu 26.04, Buildroot Linux with QT GUI, Fedora, Bianbu OS, Deepin, OpenKylin, OpenHarmony 6.1, OpenEuler
	Power	12V (Support 12V~19V wide voltage input)
	Interface type	Gold finger (SODIMM 260P standard interface, 0.5mm pitch)
	Dimension	69.6mm × 45.0mm × 4.5mm
	Weight	≈ 23g
	Environment	Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Operating Humidity: 10%～90%RH (No condensation)
Interface Specifications	Internet	Via GMAC interface, expandable to 4-channel Gigabit Ethernet, supporting TSN protocol
	Video input	4 × MIPI-CSI (4 Lanes, 1.5 Gbps/Lane, supports 1/2/4 Lane mode) Supports simultaneous input of up to 12 cameras
	Video output	1 × MIPI-DSI (8 Lanes, 4.5Gbps/Lane, Max resolution 4K@60fps) 2 × DP/eDP (Max resolution 4K@60fps)
	Audio output	6 × Full-duplex I²S (48kHz sampling rate) 4 × Half-duplex I²S (2 connected to DP/eDP controller, 48kHz sampling rate) 2 × DP/eDP audio interfaces (192kHz sampling rate)
	PCIe	8 × PCIe 3.0 (8Gbps/Lane, PCIe x8 supports RC & EP modes, hot-pluggable)
	USB	3 × USB3.0 HOST (combo with PCIe), 1 × USB3.0 DRD (Type-C, including USB2.0 OTG), 1 × USB2.0 HOST
	Other interfaces	6 × SPI, 17 × UART, 9 × I2C, 10 × CAN FD, 30 × PWM, 2 × eSPI, GPIO
