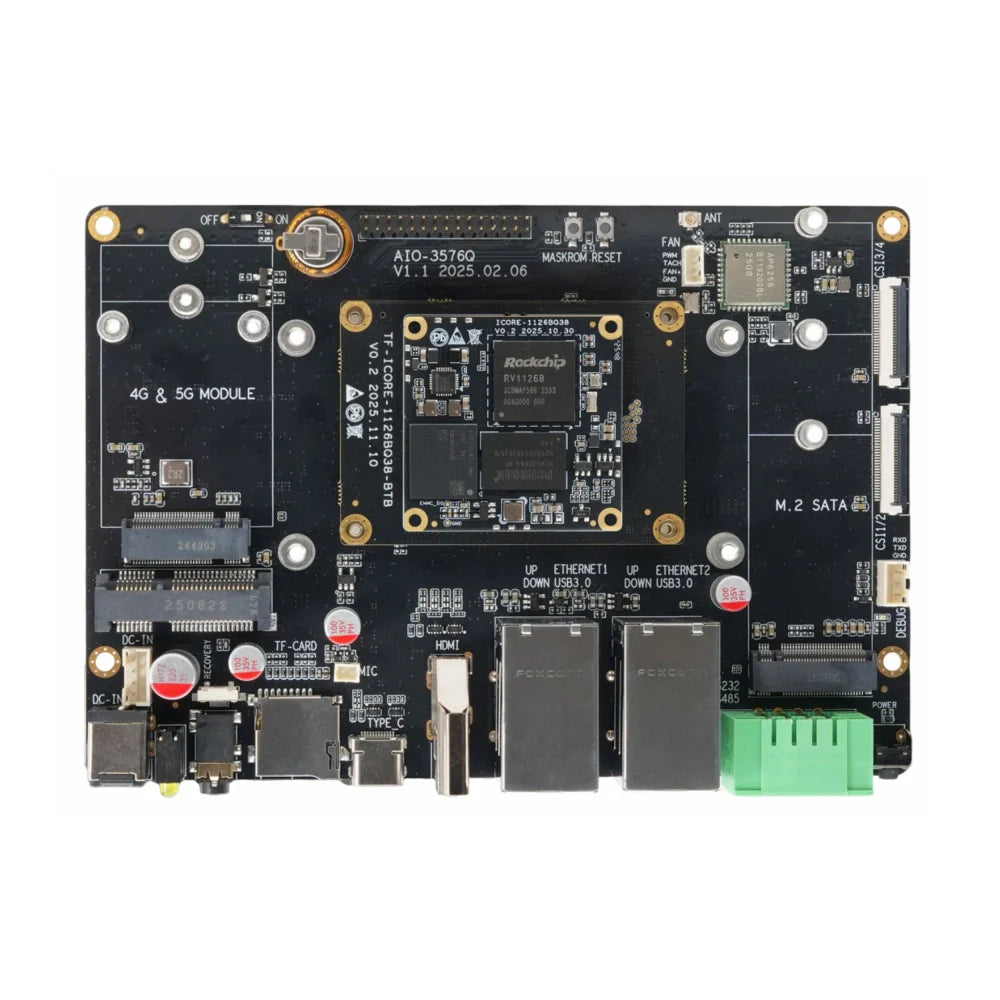

ICORE-1126BJQ38

Rockchip RV1126BJ

Quad-core 64-bit ARM Cortex-A53, integrated with NEON and FPU, maximum main frequency of 1.6GHz

Built-in 12MP ISP with multiple algorithm accelerators including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, gamma correction and feature point detection. Integrated 8MP AI-ISP enables day-night dual-mode adaptation with AI Remosaic technology; supports AOA (Always On Audio), 6-DOF digital anti-shake, binocular AI dynamic stitching and more.

3TOPS NPU, supporting INT4/INT8/INT16/FP16 mixed-precision computing

Encoding: 12M@30fps H.264

Decoding: 4K@30fps H.264

LPDDR4/LPDDR4X (1GB/2GB/4GB Optional)

eMMC (8GB/16GB/64GB Optional)

Debian12, Buildroot+QT

Supports private deployment of lightweight large language models and multimodal large models with up to 2B parameters under the Transformer architecture, such as small-sized large AI models including the Qwen series, Gemma2-2B, Phi2, InternLM2, MiniCPM series, TinyLLAMA, and RWKV7. Supports deep learning frameworks such as TensorFlow, TensorFlow Lite, PyTorch, Caffe, and ONNX.

5V (voltage tolerance ±5%)

Normal: 1W(5V/200mA), Max: 3W(5V/600mA), Min(Sleep): 0.2W(5V/40mA)

BTB (2 × BTB Socket (100Pin))

38.0mm × 38.0mm × 6.0mm

≈9g

Operating Temperature: -40℃ ~ 85℃,
Storage Humidity: 10%～90%RH (non-condensing)

One Gigabit Ethernet port can be expanded via the GMAC interface, with FEPHY Fast Ethernet functionality supported. Due to hardware resource limitations, only one of the two Ethernet modes can be selected for use at any given time.
TSO (TCP Segmentation Offload) and USO (UDP Segmentation Offload) network acceleration are supported
2.4GHz/5GHz dual-band Wi-Fi and Bluetooth can be expanded via the SDIO 3.0 interface
4G/3G networks can be expanded via the USB interface

2 × (MIPI-CSI/LVDS/Sub LVDS) DPHY
- 4 Lanes per DPHY group (1×4 Lanes or 2×2 Lanes)
- 2.5 Gbps per Lane
1 × DVP (BT.601/BT.656/BT.1120)
*A maximum of 5 cameras can be supported for concurrent input via the above interfaces

1 × MIPI-DSI (1080P@60Hz, 1×4lanes)
Supports BT.656/BT.1120 interfaces
Supports MCU/RGB LCD interfaces, with a maximum of 24 bits

1 × SAI (4T/4R), 1 × SAI (1T/1R), 1 × SAI (1T/3R), supporting I2S/TDM/PCM audio protocols
PDM and Audio Codec support a sampling rate of up to 192KHz

1 × USB2.0 HOST, 1 × USB3.0 DRD

2 × SPI, 8 × UART, 5 × I2C, 2 × CAN, 27 × PWM, GPIOs, 1 × SDMMC, 1 × SDIO3.0, 3 × SARADC
