Technical Specifications
|
Server form
|

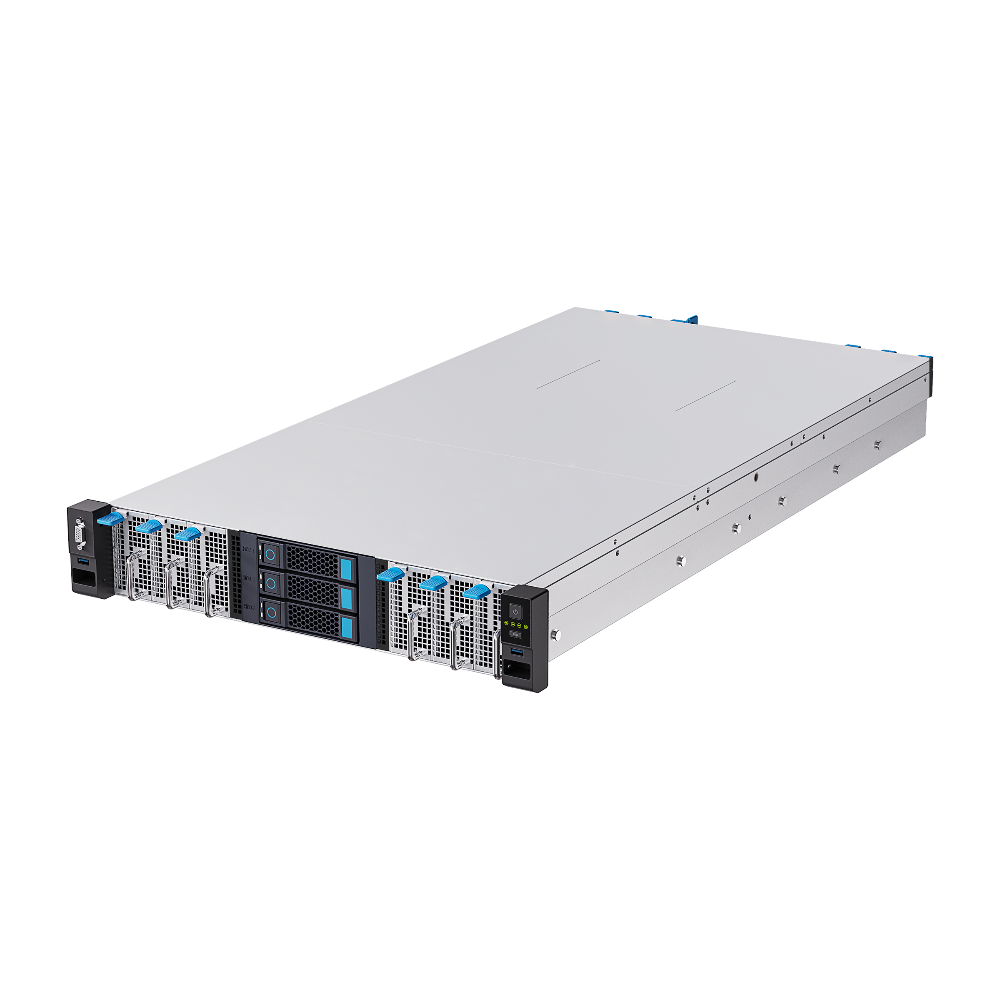

2U rack-mounted computing power server
|
|---|
|
Architecture
|
|
|---|
|
Number of nodes
|
12 compute blades (96 distributed compute nodes) + 1 control node
|
|---|
|
Compute nodes
|
Octa-core 64-bit processor SpacemiT Key Stone K3, up to 2.4GHz
|
|---|
|
Control nodes
|
Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS
|
|---|
|
AI computing power
|
5760TOPS (60T× 96, SquareINT4)
|
|---|
|
Fan module
|
14 high-speed cooling fans
|
|---|
|
Basic Specifications
|
Video encoding
|
4K@90fps H.264
|
|---|
|
Video decoding
|
|
|---|
|
RAM
|
32GB LPDDR5 × 96
(8/16/32GB)
|
|---|
|
Storage
|
|
|---|
|
Storage expansion
|
3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 3 (Supports hot swapping; BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)
|
|---|
|
Power
|
2 × 1300W hot-swappable power supplies, 1+1 redundancy support
|
|---|
|
Dimension
|
Standard 2U rack servers: 495.60mm × 928.51mm × 88.80mm
|
|---|
|
Environment
|
Operating Temperature: 0ºC ~ 30ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)
|
|---|
|
Physical Specifications
|
Installation requirements
|
IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above
Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm
|
|---|
|
Software Specifications
|
BMC
|
The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
|
|---|
|
Large language models
|
All models support private deployment of ultra-large-scale parameter models under the Transformer architecture, such as large language models including Deepseek-R1 Series, Gemma Series, Llama Series, ChatGLM Series, Qwen Series, Phi Series, etc.
|
|---|
|
Vision large models
|
K3: Supports private deployment of all vision large models
QCS8550: Supports private deployment of vision large models including Qwen2.5-VL, InternVL3, etc.
|
|---|
|
Deep learning
|
All models: Support traditional network architectures such as CNN, RNN, LSTM, and support various deep learning frameworks such as TensorFlow, PyTorch, PaddlePaddle, ONNX, and Caffe. Support custom operator development and Docker containerization management technology
|
|---|
|
Interface Specifications
|
Network
|
8 × 10Gbps SFP+, 1 × Gigabit Ethernet (RJ45, MGMT is used as BMC management network)
|
|---|
|
Console
|
1 × Console (RJ45, BMC debug serial port, baud rate 115200)
|
|---|
|
Video output
|
1 × VGA (maximum resolution 1080P, BMC management display)
|
|---|
|
USB
|
3 × USB3.0, 1 × Type-C (OTG)
|
|---|
|
Button
|
1 × Power, 1 × UID, 1 × Recovery, 1 × Reset
|
