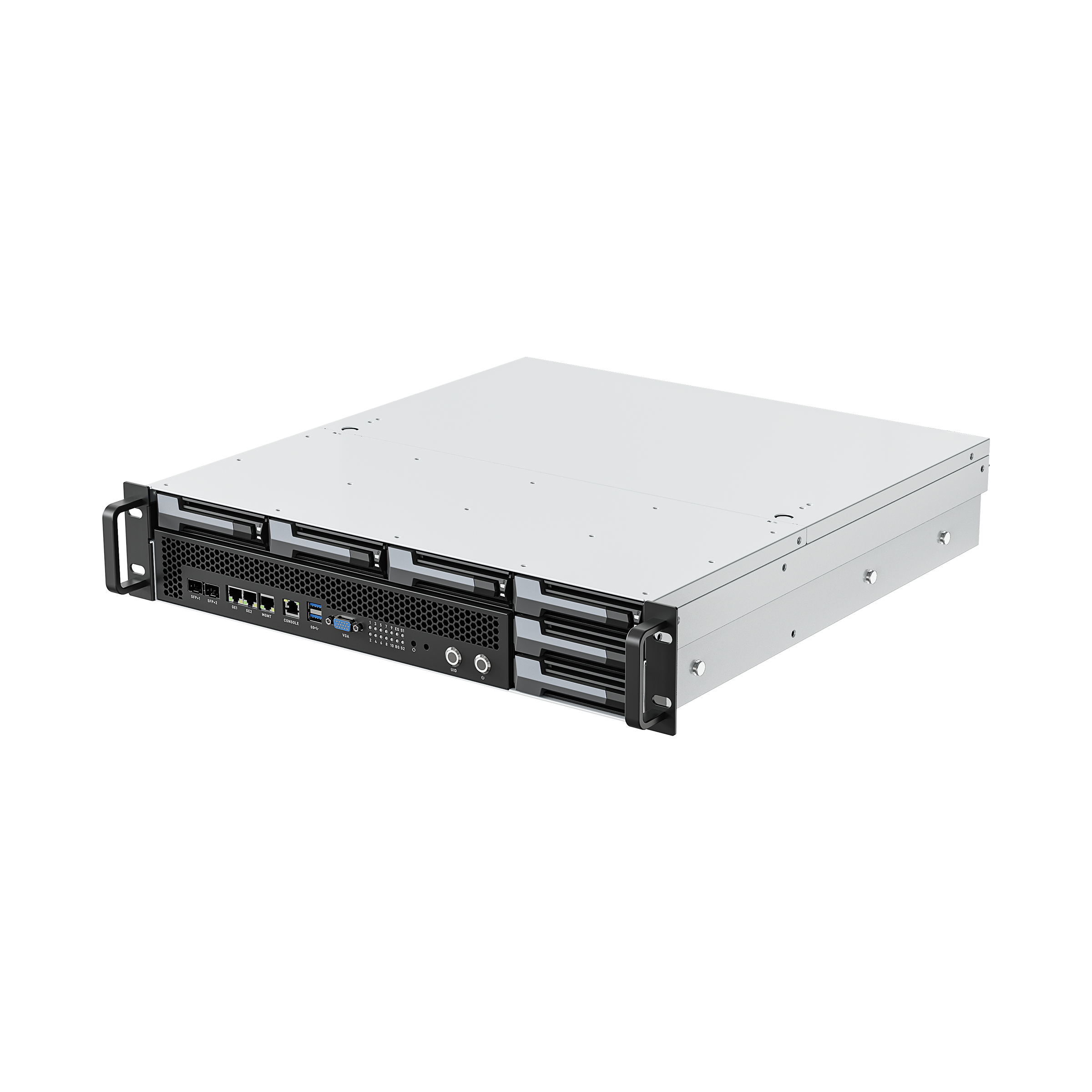

CSB2-N10NOrinNX

CSB2-N10NOrinNX

Ten Jetson Orin NX nodes with up to 157 TOPS AI per node in a 2U rack for local models and video analytics.

$25,829.00
Spec
• In Stock
  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Specifications

CSB2-N10NOrinNX
Technical Specifications Server form

2U rack-mounted computing power server

Architecture

ARM architecture

Number of nodes

10 distributed computing nodes + 1 control node

Compute nodes

Octa-core 64-bit processor NVIDIA Jetson Orin NX, main frequency up to 2.0GHz

Control nodes

Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS

AI computing power

1570TOPS (157T × 10, INT8)

PCIe expansion slots

Supports 1 × half-height half-length PCIe 2.0 x4 standard slot (signal rate: PCIe 2.0 x1)

Fan module

4 high-speed cooling fans

Basic Specifications Video encoding
1×4K@60fps,
3×4K@30fps
6×1080P@60fps,
12×1080P@30fps
Video decoding

1×8K@30fps,
2×4K@60fps,
4×4K@30fps,
9×1080P@60fps,
18×1080P@30fps

RAM

16GB LPDDR5 × 10

Storage

256GB (2242 PCIe NVMe SSD, the server is internally assembled)

Storage expansion

3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 6 (Supports hot swapping; BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)

Power

Single power supply (default) / Redundant dual power supplies optional

Dimension

487.9mm × 530.59mm × 88.8mm

Environment

Operating Temperature: 0ºC ~ 42ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)

Physical Specifications Installation requirements

IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above
Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm

Full weight

Server net weight: 11.5kg, total weight with packaging: 13.7kg

Software Specifications BMC

The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped

Large language models

All models support the privatization of ultra-large-scale parametric models under the Transformer architecture, such as Deepseek-R1 series, Gemma series, Llama series, ChatGLM series, Qwen series, Phi series and other large language models

Vision large models

BM1684X: Support the privatization deployment of large visual models such as ViT, Grounding DINO, SAM, etc.
Jetson Orin NX: Supports the privatization deployment of large vision models such as EfficientVIT, NanoOWL, NanoSAM, SAM, TAM, etc.

AI Painting

BM1684X/Jetson Orin NX: Support the private deployment of Flux, Stable Diffusion, and Stable Diffusion XL image generation models

Deep learning

All models: Support traditional network architectures such as CNN, RNN, LSTM, and support various deep learning frameworks such as TensorFlow, PyTorch, PaddlePaddle, ONNX, and Caffe. Support custom operator development and Docker containerization management technology
Jetson Orin NX: Supports Ollama local large model deployment framework and ComfyUI graphical deployment framework

Interface Specifications Network

2 × 10G Ethernet (SFP+), 2 × Gigabit Ethernet (RJ45), 1 × Gigabit Ethernet (RJ45, MGMT is used as BMC management network)

Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)

Video output

1 × VGA (maximum resolution 1080P, BMC management display)

USB

2 × USB3.0 (Lower USB port is USB3.0 OTG, supporting BMC upgrade via USB flash drive)
1 × USB2.0 (Internal USB2.0 port, maintains appearance integrity and enables expansion of internal dongles, Bluetooth, Wi-Fi modules, etc.)

Button

1 × Reset, 1 × UID, 1 × Power
