AIO-3562JQ

AIO-3562JQ

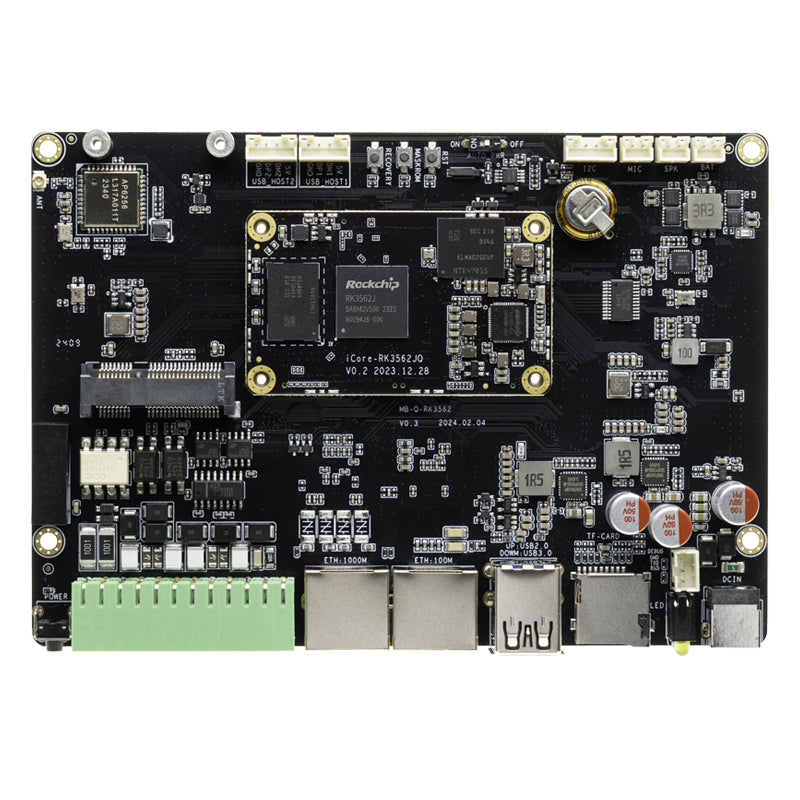

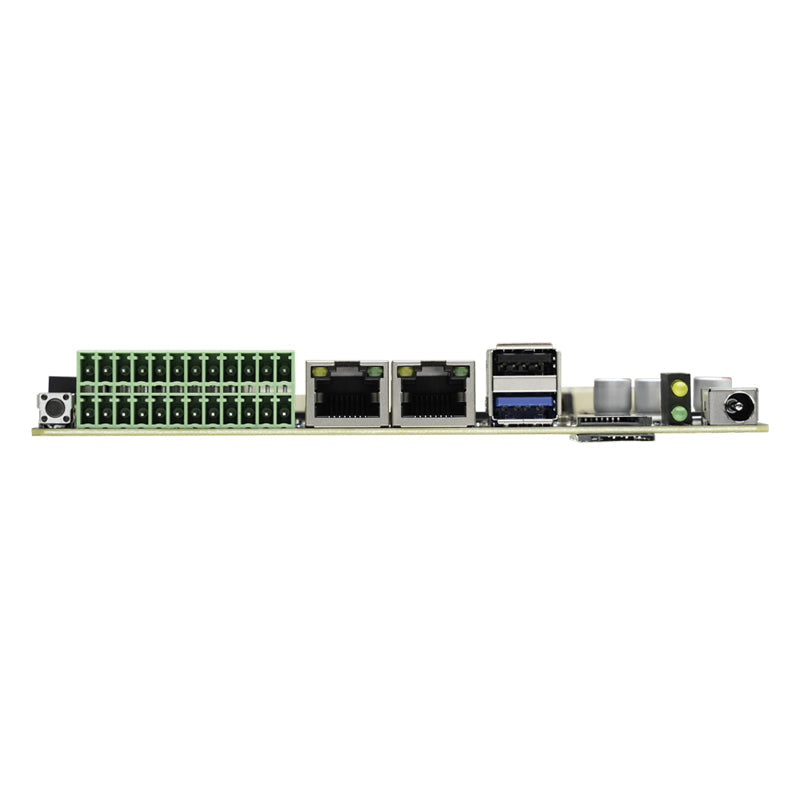

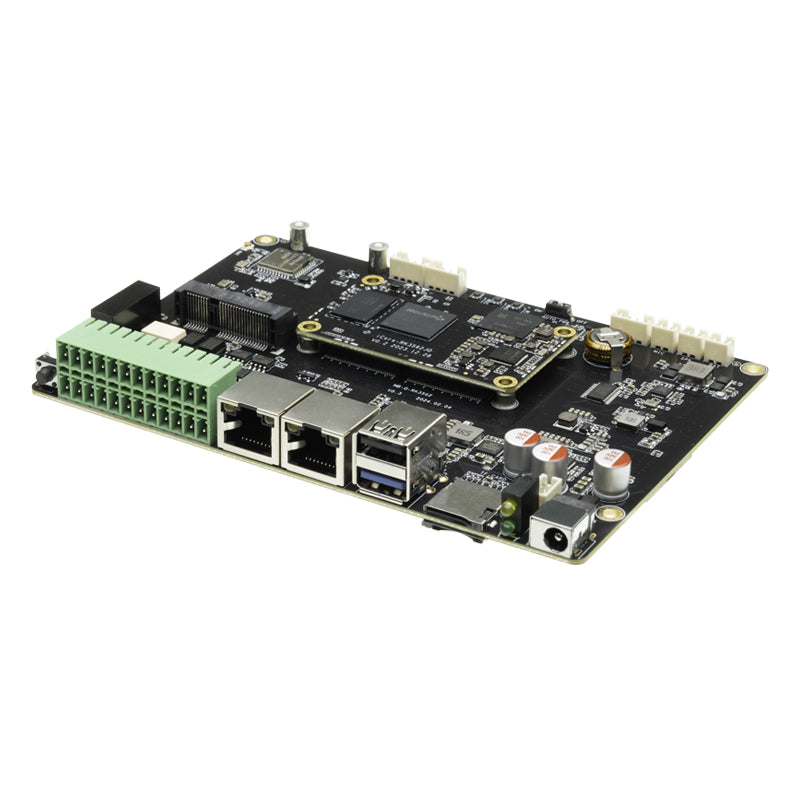

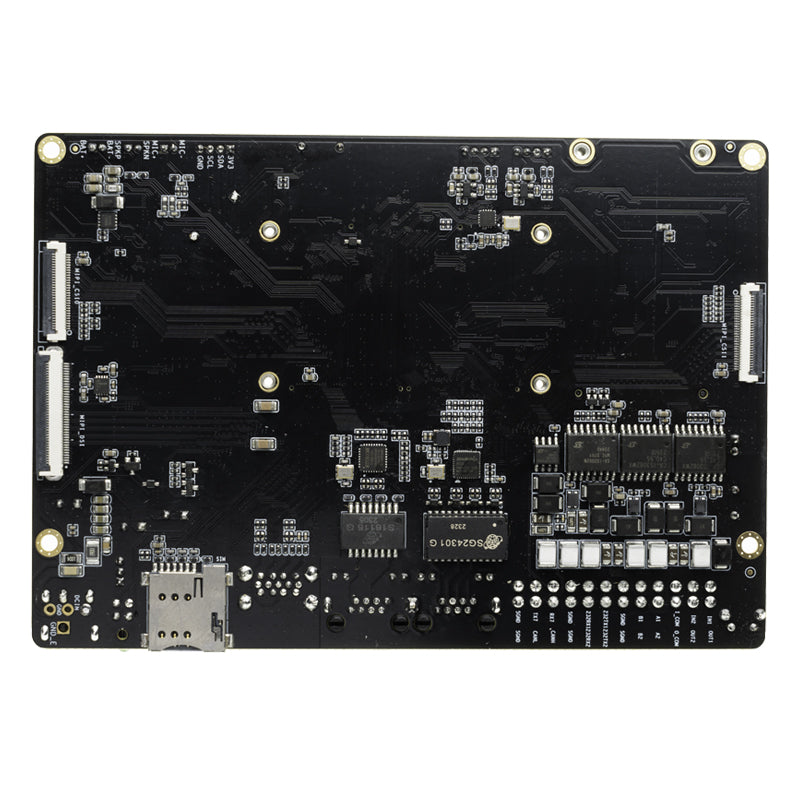

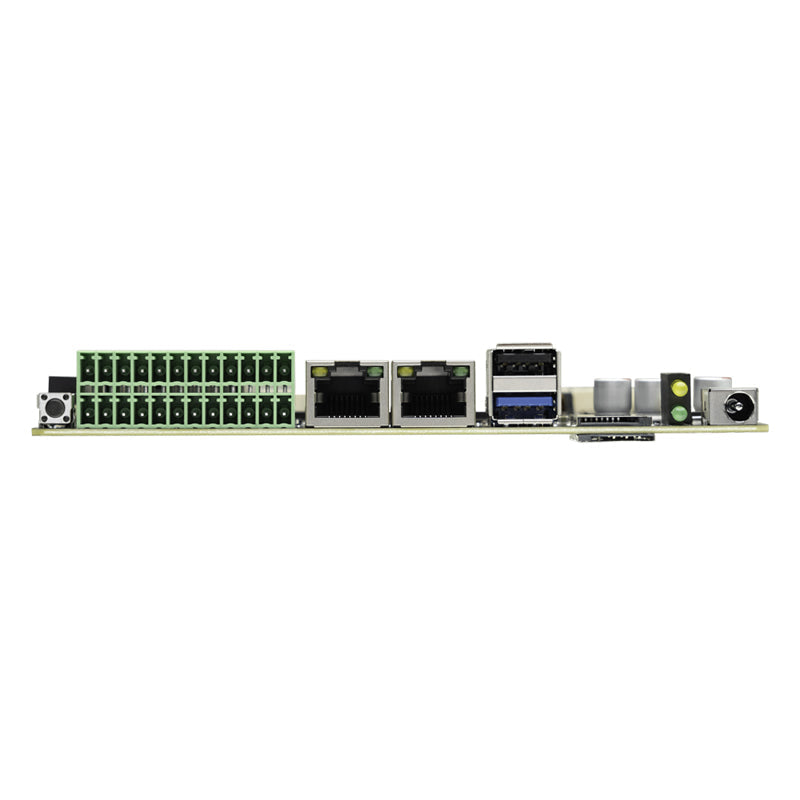

Industrial RK3562J motherboard with a 1 TOPS NPU and CAN/serial interfaces for HMI and equipment control.

$219.00
Storage
Quantity
• In Stock
  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Soc

Rockchip RK3562J

Quad-core 64-bit Cortex-A53 processor, up to 1.2GHz

Cpu

Quad-core 64-bit 1.8GHz

Npu

1TOPS

Vpu

4K 30fps H.265/H.264/VP9 and 1080P 60fps H.264 video decoding

1080P 60fps H.264 video encoding

13M ISP with HDR

Ram

LPDDR4/LPDDR4x (2GB/4GB/8GB optional)

Storage

eMMC (16GB/32GB/16GB/32GB/64GB optional)

Power

DC 12V (5.5mm x 2.1mm, supporting 9V~36V wide input voltage)

Power consumption

Normal: 2.04W (12V/0.17A)

Max: 4.8W (12V/400mA)

Video output

1 x MIPI-DSI(2048 x 1080@60Hz)

Video input

2 x MIPI-CSI (1 x 4 Lanes or 2 x 2 Lanes)

Audio input

1 x MIC (2P-2mm), 1 x SPK (1.3W/8Ω, 2P-2mm)

Os

Ubuntu, Debian, Buildroot+QT

Dimension

146mm x 102mm x 21.5mm

Weight

≈120g

Environment

Operating temperature: -40℃- 85℃

Operating humidity : 5%~90%RH (non-condensing)

Network

1 x Gigabit Ethernet (1000 Mbps), 1 x 100 Mbps, 2.4GHz/5GHz dual-band WiFi (802.11a/b/g/n/ac), Bluetooth 5.0, and 4G LTE expansion (Mini PCIE)

Internet

4G LTE
FE × 1
Bluetooth5.0
2.4GHz/5GHz Dual-band Wi-Fi
GbE × 1

Usb

1 x USB3.0 (OTG), 1 x USB2.0, 2 x USB2.0 HOST (Wafer connector)

Product tutorials Click Here
Product datasheet Click Here
SDK software and firmware files Click Here
